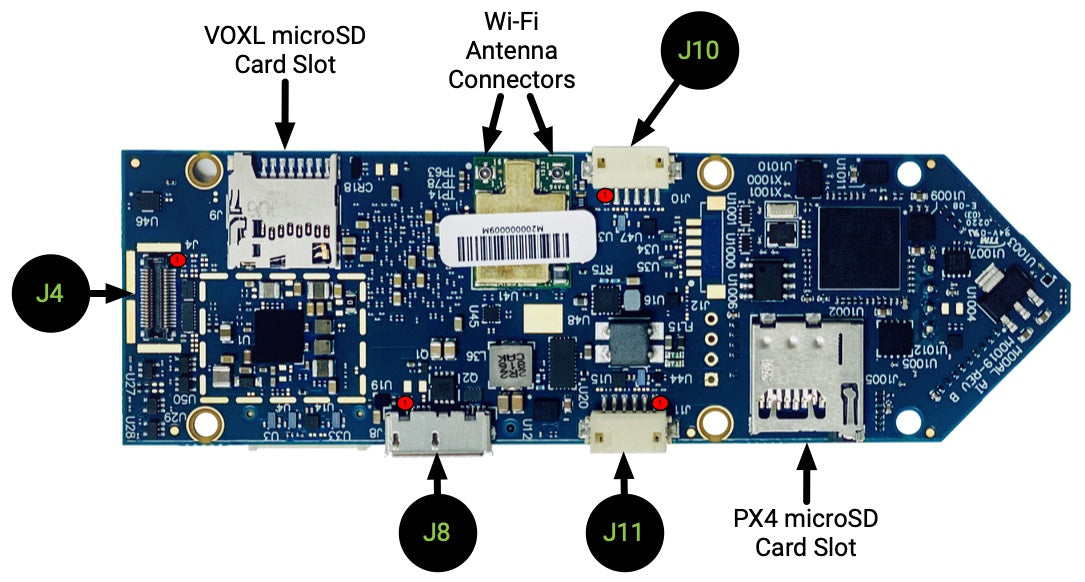

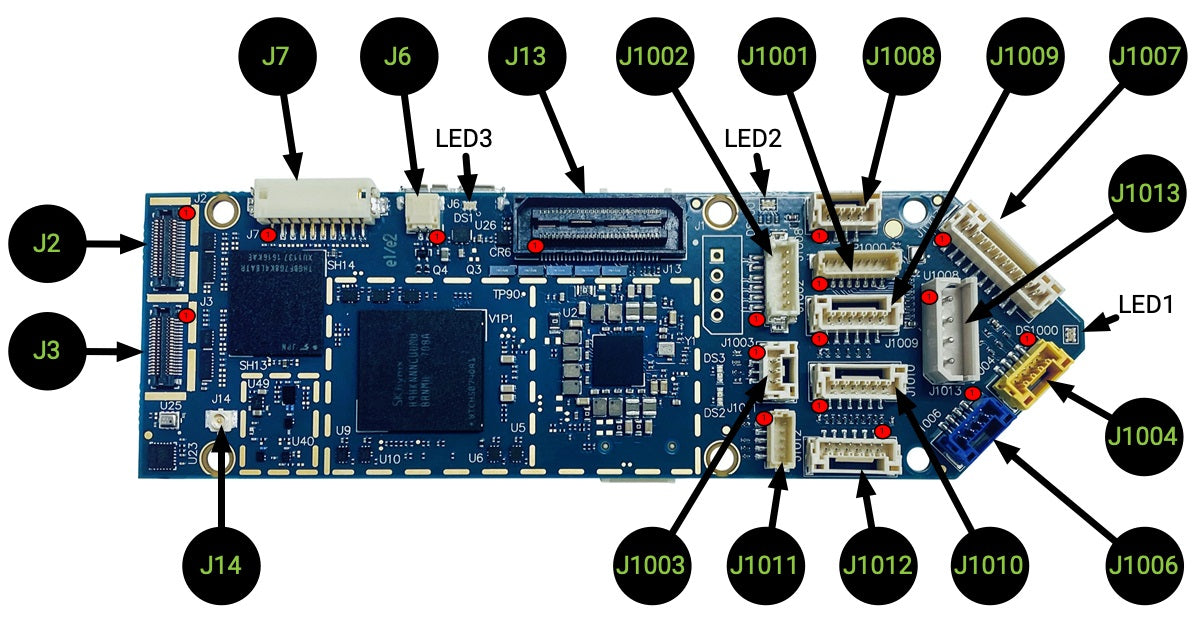

VOXL Flight PX4 – All-in-One Autonomy Computer & Flight Controller (Made in USA, GPS-Denied Ready) - Refurbished
The Kamikaze is a high-performance FPV drone built for speed and versatility. Equipped with dual day and night cameras.
Description
VOXL Flight PX4 is an integrated autopilot that combines:
-
Qualcomm Snapdragon 821 companion computer for Linux, ROS/ROS2, computer vision and AI
-
STM32F765-based PX4 flight controller for stable flight control, sensor fusion and mission execution PX4 Documentation+1
Delivered as a single board, it significantly reduces cabling, weight and reliability issues compared to separate FC + companion computer setups.
Key capabilities:
-
Obstacle avoidance & GPS-denied flight – vision-based navigation using multiple image sensors with time-synchronised IMUs PX4 Documentation+1
-
Full PX4 support with manufacturer-maintained branch, UART ESC support and enhanced VIO/VOA features PX4 Documentation
-
Integration with ROS, ROS2, MAVROS, MAVSDK and Docker for advanced autonomy and AI workloads
This makes VOXL Flight PX4 ideal for high-end FPV, kamikaze, interceptor and ISR platforms where you want non-Chinese, PX4-based flight control with strong vision & autonomy.
Note for your site: PX4 docs mark VOXL Flight as discontinued / legacy but still widely used in labs and deployed systems. Good to show it as “legacy / dev & special-project autopilot” rather than your primary new-design recommendation. PX4 Documentation
Key Features
-
Snapdragon 821 with 4 GB LPDDR4, running Linux Yocto (Docker, OpenCV, ROS, PX4 tools) PX4 Documentation+1
-
Integrated PX4 flight controller (STM32F765, 216 MHz, ARM Cortex-M7) on same PCB PX4 Documentation+1
-
Supports MIPI-CSI2, USB UVC, HDMI cameras; 4K30 capture and 720p FPV video PX4 Documentation
-
Built-in Wi-Fi 802.11ac dual-band + Bluetooth 4.2; optional LTE & Microhard radio modules PX4 Documentation+1
-
Multiple IMUs + barometers for robust sensor fusion (ICM-42688, ICM-20948 / BMI088, BMP280/388) PX4 Documentation+1
-
Supports GPS, RC (PPM/SBUS/Spektrum), CAN, telemetry, LEDs, microSD etc. PX4 Documentation
Technical Specs (compact)
| Section | Spec / Details |
|---|---|
| Total Weight | ~26 g (board) PX4 Documentation |
| CPU / Compute | Snapdragon 821, quad-core up to 2.15 GHz, Adreno 530 GPU, Hexagon cDSP & sDSP PX4 Documentation |
| RAM / Storage | 4 GB LPDDR4, 32 GB UFS 2.0 + microSD slot PX4 Documentation |
| OS / Software | Linux Yocto Jethro + Docker, ROS, PX4, OpenCV, Qualcomm Vision SDK PX4 Documentation+1 |
| Connectivity | Wi-Fi 802.11ac 2×2, Bluetooth 4.2, optional LTE/Microhard radios PX4 Documentation+1 |
| Flight Controller | STM32F765II (216 MHz M7), PX4 firmware, multiple IMUs + barometer, secure element PX4 Documentation+1 |
| Interfaces (FC side) | GPS/MAG, telemetry, CAN bus, PPM/Spektrum/RC inputs, LEDs, microSD, etc. PX4 Documentation |
| Power | SWaP-optimised, ~3–10 W typical use (similar to VOXL) AMOV LAB+1 |
What’s Included (Dev Kit variant)
-
VOXL Flight board (CCA, tested)
-
VOXL Power Module v3 Kit (APM)
-

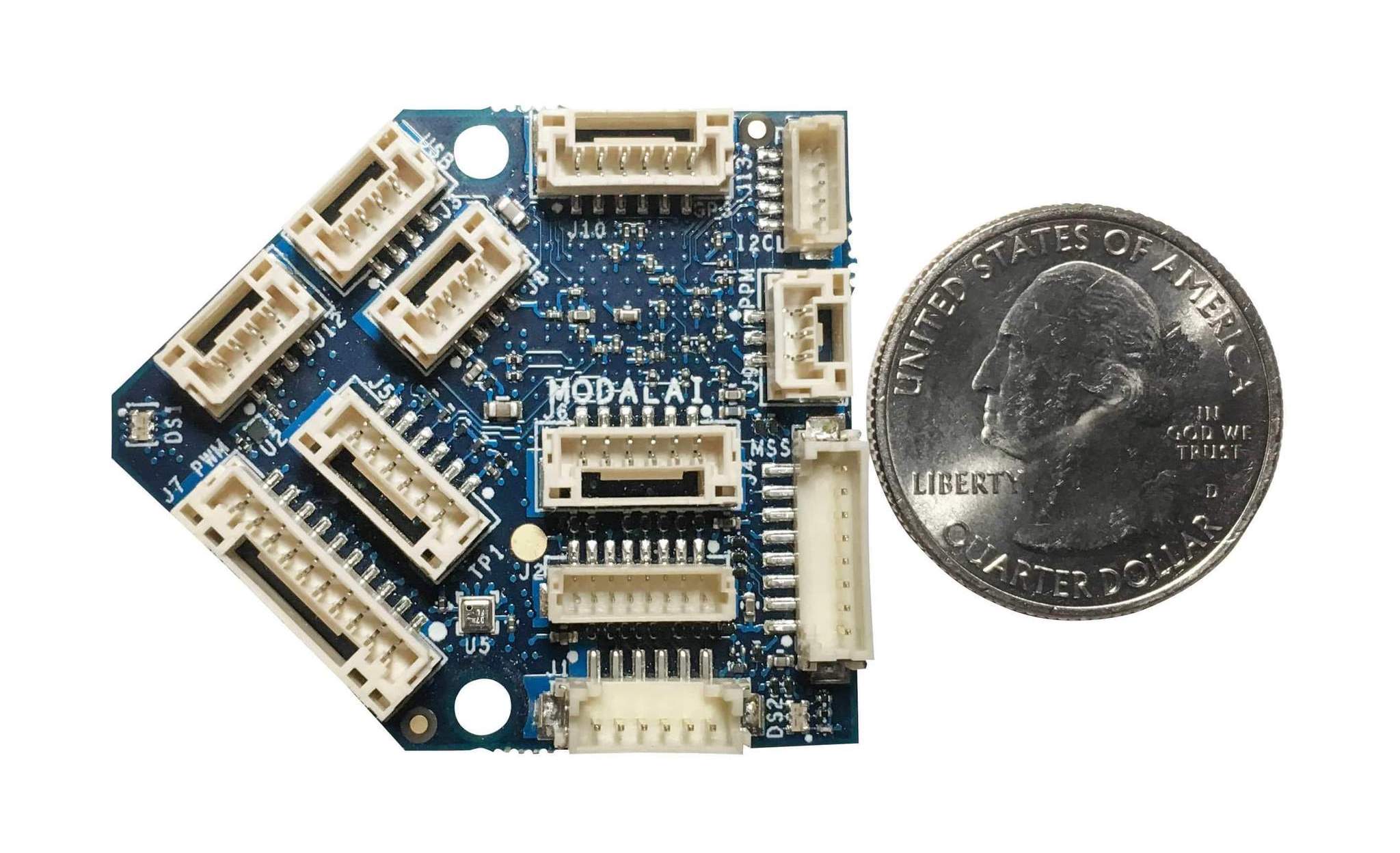

Flight Core PWM breakout kit + cable
-
VOXL Wi-Fi Antenna Kit
-
ESD bags and warning labels
(For Board Only variant, just list the VOXL Flight PCB + ESD packaging.)
Kamikaze is dynamic fpv drone
The Kamikaze is a high-performance FPV drone built for speed and versatility. Equipped with dual day and night cameras, it captures stunning aerial footage in any lighting condition. With a top speed of 150 kmph, this drone delivers the agility and responsiveness serious pilots demand. Whether you're racing through challenging courses or filming dynamic action sequences, the Kamikaze combines raw power with precision control for an unmatched flying experience.
Below 1.5kg
150+ kmph
upto 5km
20+ mins
upto 4K/ Thermal
150+
kmph Speed
Lightning-fast performance at 180 km/h top speed. Built for thrill-seekers who demand extreme velocity and precision control in every flight.
20+
Mins Flight Time
Our drones deliver extended flight times that keep you in the air longer. With optimized battery systems and efficient power management.
PROMOTING MAKE IN INDIA
Inside The Box (For Drone Kits Only)*
*Images are for reference and are subject to changes (Action camera not included)
Applications
Have Questions?
What radio frequencies do military FPV drones use?
Most use 2.4 GHz or 5.8 GHz bands for video and control; advanced models may use encrypted digital links or frequency-hopping to resist jamming.
What is the typical range of a military FPV drone?
Standard range is 2–10 km line-of-sight, depending on transmitter power, antenna type, and environmental interference.
What camera resolution is offered by kamikaze?
The Kamikaze is equipped with a 4K thermal camera that delivers reliable surveillance in any lighting condition. Whether you're monitoring during daylight hours or complete darkness, the thermal imaging technology captures clear, detailed footage without relying on visible light. This makes it ideal for round-the-clock security operations where traditional cameras might struggle.
Are spare parts available for repairing the Kamikaze FPV kit?
As India's leading drone experts, we stock all essential spares for the trikaal airframe, motors, flight controllers etc. to keep you flying after crashes with minimal downtime.
What after-sales support do you offer for technical FPV issues?
Purchasing the Advik Analog or Digital kit allows you to avail a FREE technology consultation with our experts to resolve any FPV issues faced or ask any technical questions related to the drone's components, accessories or flight performance
How can I ensure the safety of my drone during flights, especially in emergency situations?
Ensuring the safety of your drone, particularly in emergencies, is crucial. One effective measure is utilising the Trainer Mode feature available on the Advik FPV drone. This mode allows an experienced pilot to take control instantly if needed, providing an added layer of safety and preventing potential accidents during the learning process. With Trainer Mode, you can confidently explore the capabilities of your drone, knowing that expert assistance is just a switch away in case of unexpected situations.
