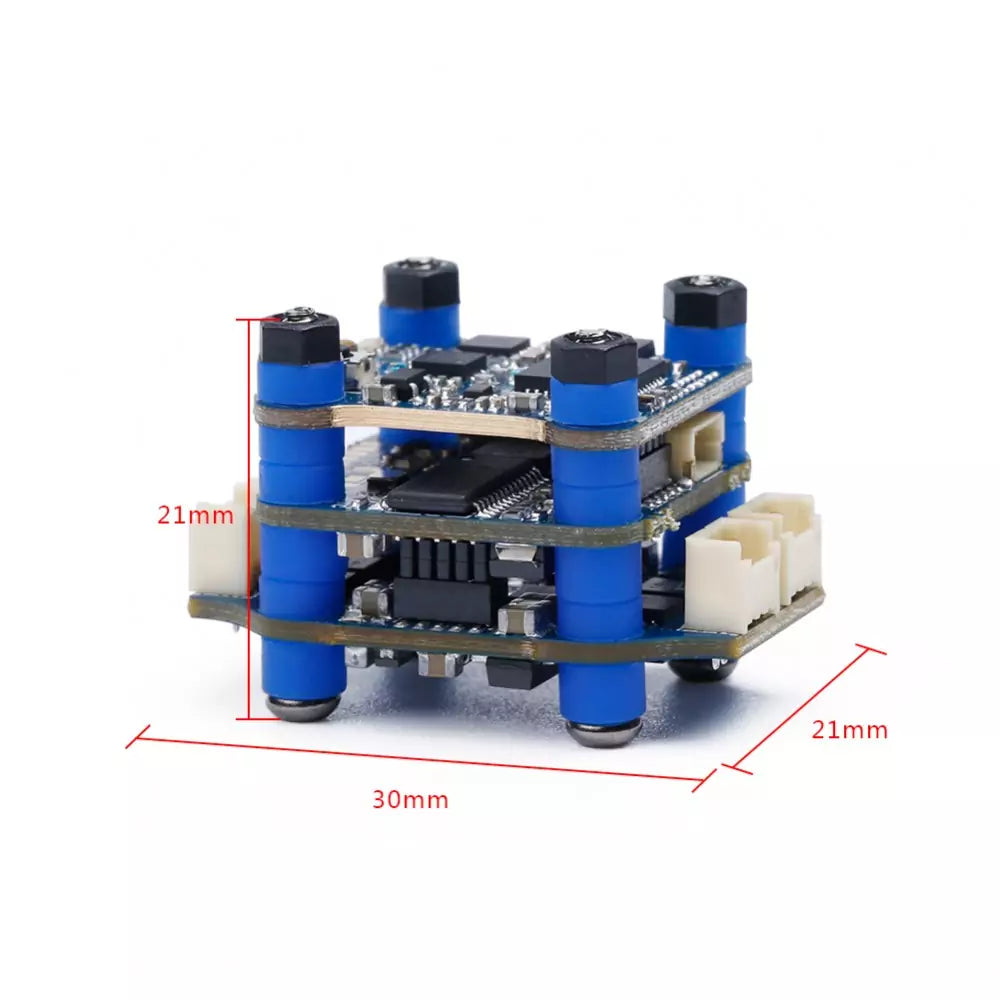

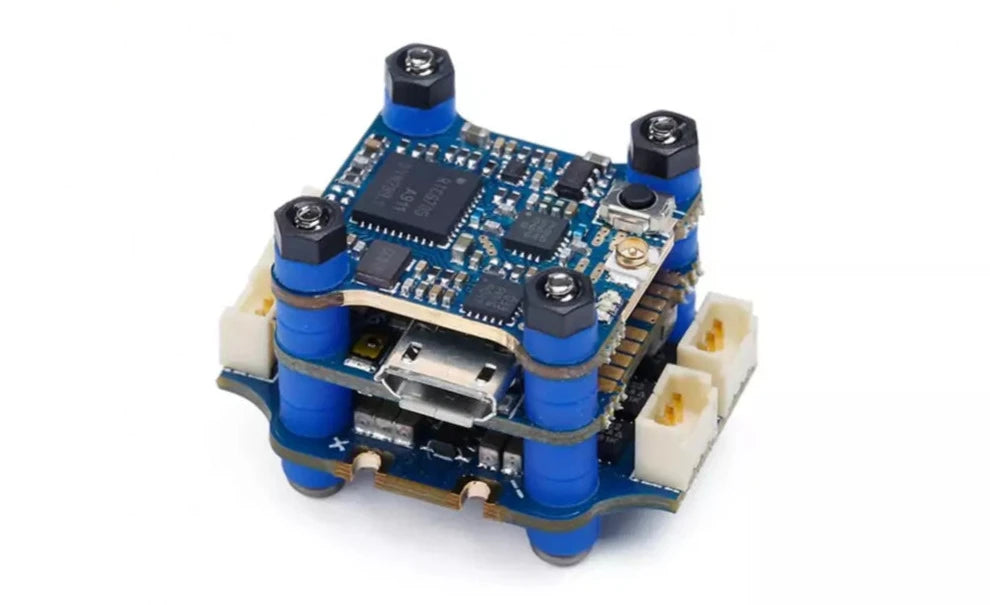

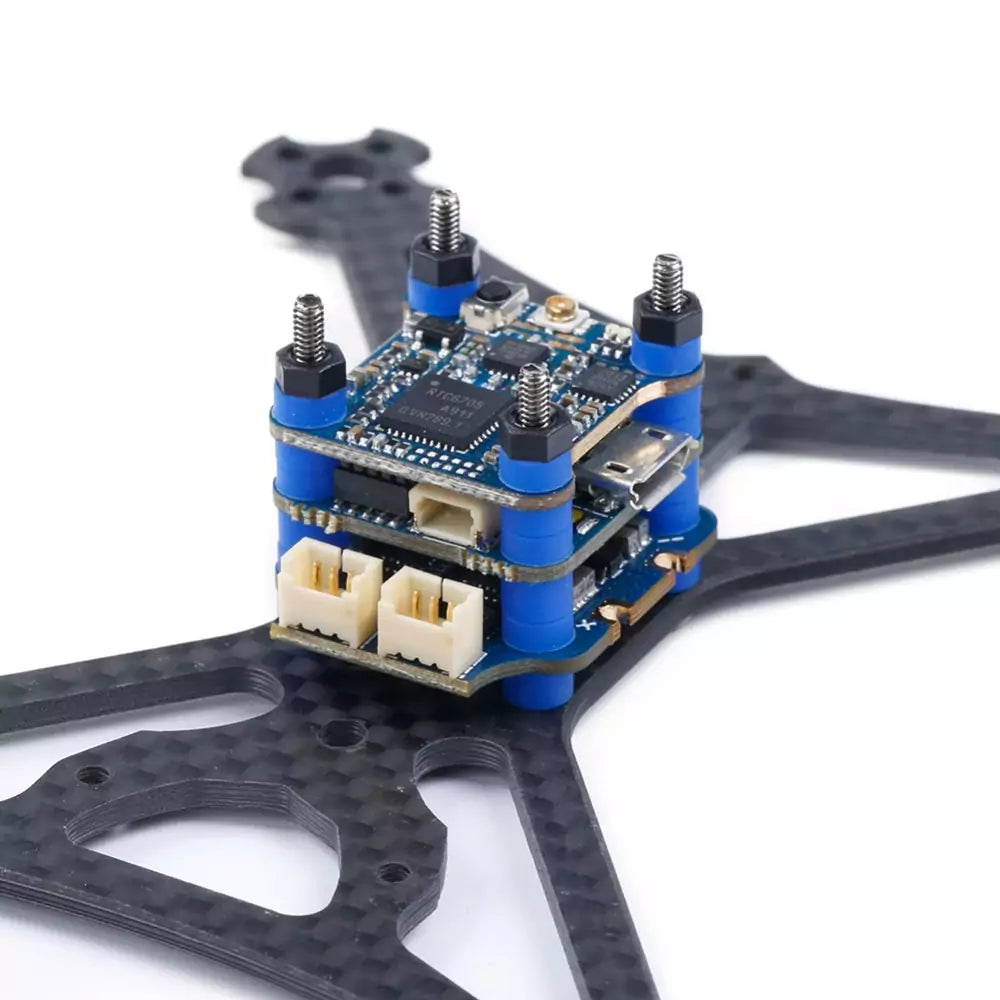

SucceX Micro F4 V2.1 15A 2-4S Flight Tower System (MPU6000,ESC Plugs)
Description
SucceX Micro F4 V2.1 Flight Controller
-STM32F411
-Input voltage 2-4S LIPO
-Gyro: MPU6000
-2x UART ports
-4x motor outputs
-Betaflight OSD :AT7456E
-Blackbox FLASH: 8MB
-BEC 5V 2.5A cont.
-Size: 21mm*21mm
-Mounting holes distance: 16*16mm
-Weight: 2.5g
-Firmware: IFLIGHT_F411_PRO
NOTE: F.PORT protocol RX input support, telemetry not supported.
SucceX Micro 15A 4-in-1 ESC(w/plug)
-Firmware: G-H-30 BLS 16.7
-BLHeliSuite
-Input voltage : 2-4S LIPO
-Continuous current: 15A
-MCU: BB21F16G
-BEC: NO
-Current sensor: yes
-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-Size: 30mm*22mm
-Mounting hole 16*16mm
-Weight: 3.6g
5.8G 200mW Micro VTX
-Power: PIT/25/100/200mW
-Antenna interface: IPEX (UFL)
-VTX protocol : IRC Tramp
-Size: 17mm*27mm
-Mounting holes: 16*16mm
-Weight: 1.6g

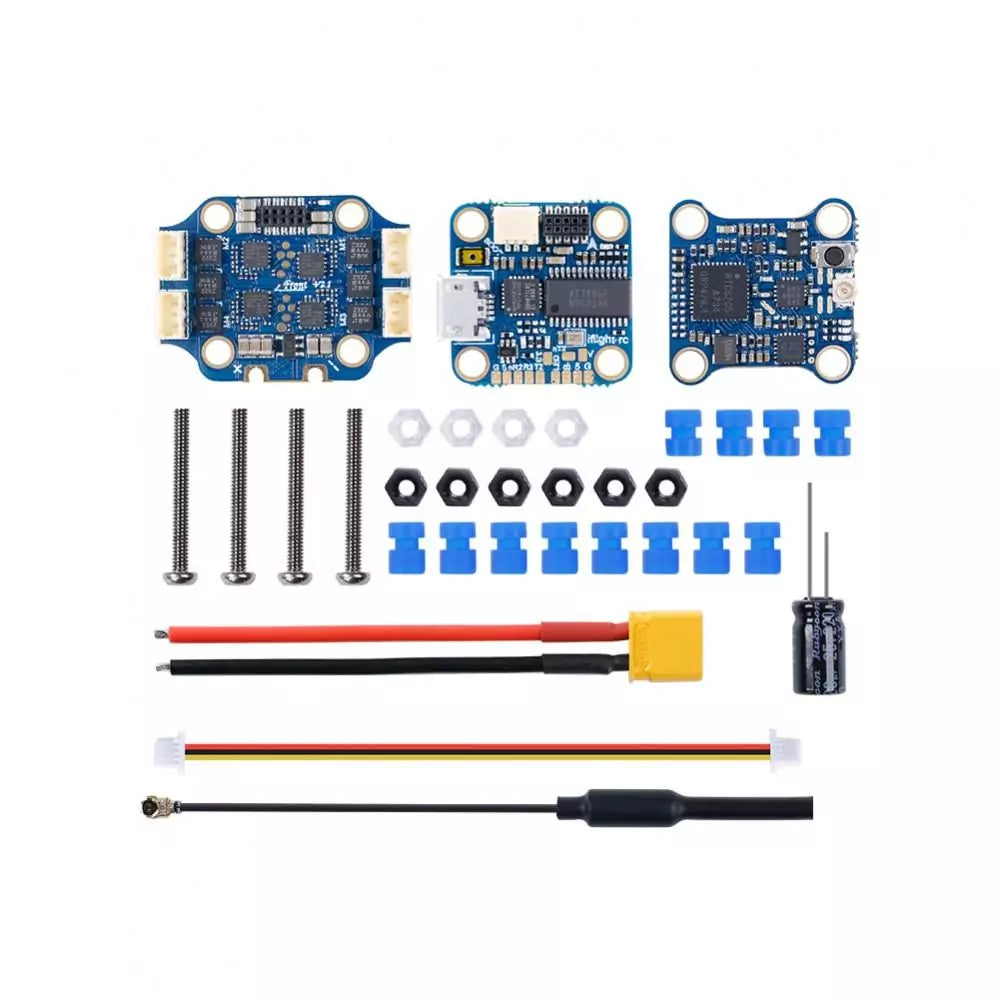

Package Included:
1 x SucceX Micro F4 V2.1 Flight controller (M3 hole)
1 x SucceX Micro 15A Brushless ESC (w/plugs,M3 hole)
1 x PIT/25/100/200mW VTX (M3 hole)
Replacement parts: （NOT INCLUDED)
Replacement 200mw VTX
SucceX Micro F4 V2.1 Pro Flight Controller
- STM32F411
- Input voltage 2-4S LIPO
- Gyro: MPU6000
- 2x UART ports
- 4x motor outputs
- Betaflight OSD :AT7456E
- Blackbox FLASH: 8MB
- BEC 5V 2.5A cont.
- Size: 21mm*21mm
- Mounting holes distance: 16*16mm
- Weight: 2.5g
- Firmware : IFF411_PRO(IFRC)
SucceX Micro 15A 4-in-1 ESC(w/plug)
- Firmware: G-H-30 BLS 16.7
- BLHeliSuite: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Input voltage : 2-4S LIPO
- Mounting hole 16*16mm
- Continuous current: 15A
- Current sensor: yes
- Size: 30mm*22mm
- MCU: BB21F16G
- Weight: 3.6g
- BEC: NO
5.8G 200mW Micro VTX
- Antenna interface: IPEX (UFL)
- Power: PIT/25/100/200mW
- Mounting holes: 16*16mm
- VTX protocol: IRC Tramp
- Size: 17mm*27mm
- Weight: 1.6g
