Skystars F7HD Pro4 Flight Controller, Support DJI KM60 Blheli_32 60A 4 in 1 ESC
Description

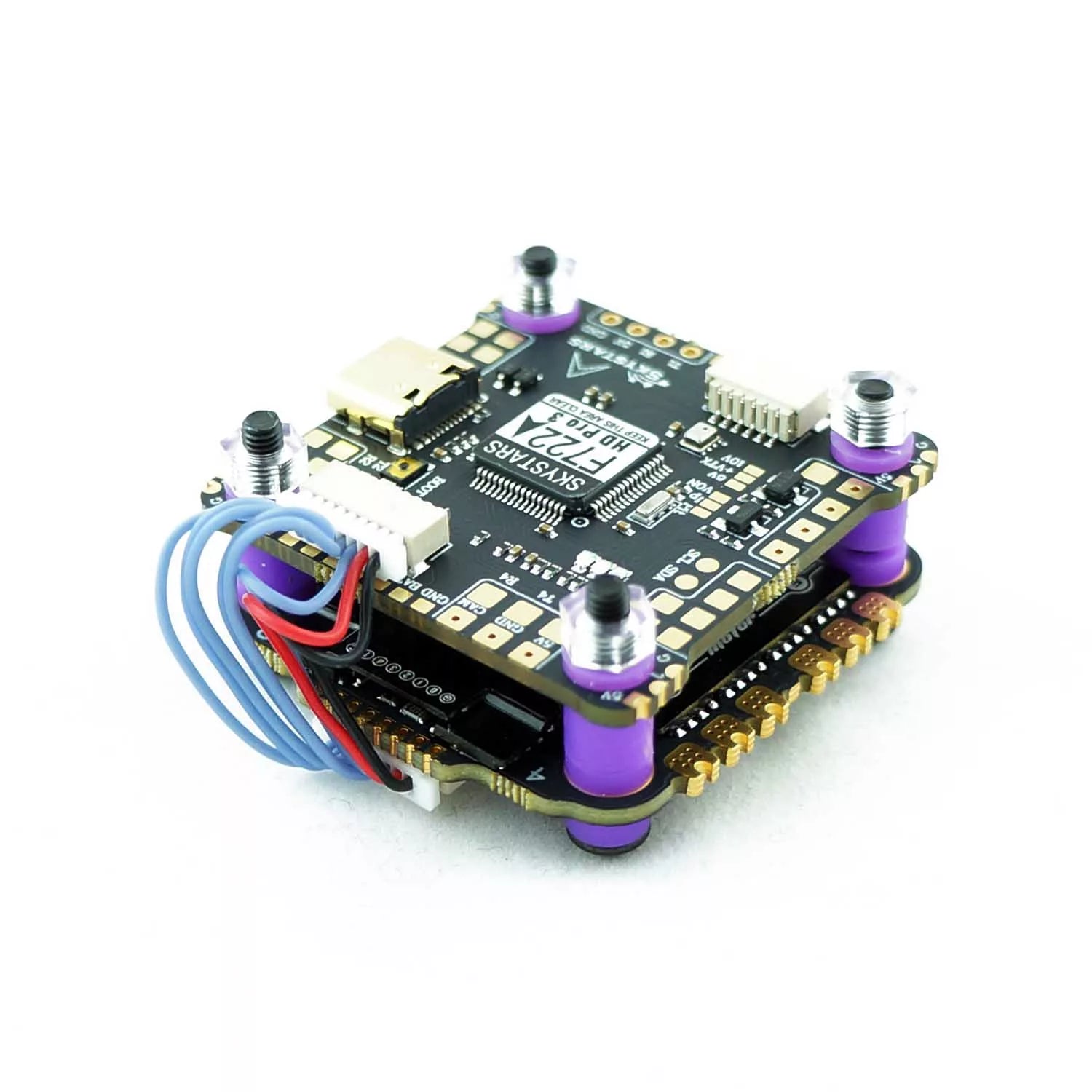

The SkyStars Fly Stack features an F722 HD Pro 3 flight controller and a KM60 60A BLHeli_32 4-in-1 128K ESC with a 30x30 mounting pattern!
Features
- The ESC has an onboard filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
- Built-in inverter, which can actually be installed in any spare UART.
- EMI Shell provides a stronger anti-interference capability.
- DJI FPV OSD is supported by any spare UART
- VTX 10V/Vbat filtered power ON/OFF switch
- Flight control onboard voltage sensor
- F722 HD Pro 3 Flight Controller
- 30x30 Mounting Pattern
- KM60 60A 128K ESC
- 3-6S LiPo Support
Specifications
SkyStarsRC F7HD Pro3 FC- MCU: STM32F722RGT6 216MHz
- Gyroscope: BMI270
- Baro: Bmp280
- OSD: Betaflight SPI OSD DJI HD OSD(UART6)
- Black box: 16MB
- 6x Uarts: UART 1/2/3/4/5/6
- 4x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
- VTX 10V/Vbat filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
- LED: 4 LED independent pads, support WS2812 programming lamp output. Receiver: Support Sbus, CRSF, IBUS, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
- Input voltage: 3-6S LiPo
- Con. Current: 60A
- Peak Current: 70A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting pattern: 30.5mm/M3
- BEC: No
- Product size: 41x46x7.6mm
- Weight: 17g about
Includes
- 1x SkyStarsRC Fly Stack F7 HD Pro3 3-6S 30x30 Stack/Combo (F722 FC / KM60 32Bit 60A 4in1 ESC)
- 4x Damping Rubbers (M3x3.5mm)
- 1x XT60 connector and wires
- 2x 8pin wiring harness (1x 70mm,1x 50mm)
- 1x 35v 560uf Capacitor
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.
Skystars F7HD Pro4 Flight Controller, Support DJI KM60 Blheli_32 60A 4 in 1 ESC
Sale priceRs. 8,999.00
Regular priceRs. 0.00 (/)
Skystars F7HD Pro4 Flight Controller, Support DJI KM60 Blheli_32 60A 4 in 1 ESC
MCU:
STM32F722RGT6 216MHz
Gyroscope:
BMI270
Barometer:
BMP280
Blackbox:
16MB
Weight:
6.9g
Mounting:
30.5mm x 30.5mm (M4 holes)
