Sentinel UAV Builder Kit – VOXL2 AI Autopilot Platform (Motors, ESC, GPS, Props Included)
The Kamikaze is a high-performance FPV drone built for speed and versatility. Equipped with dual day and night cameras.
Description

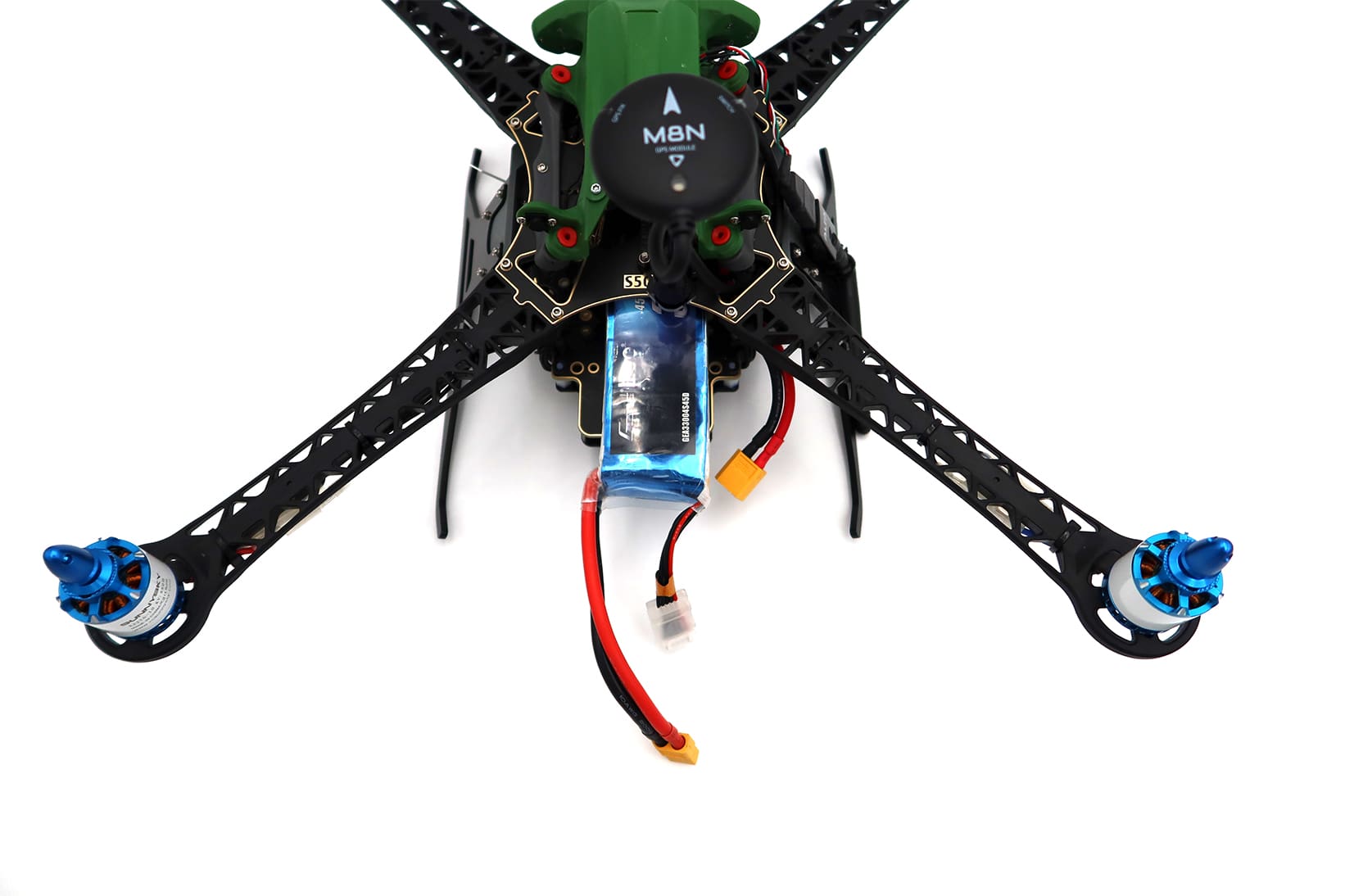

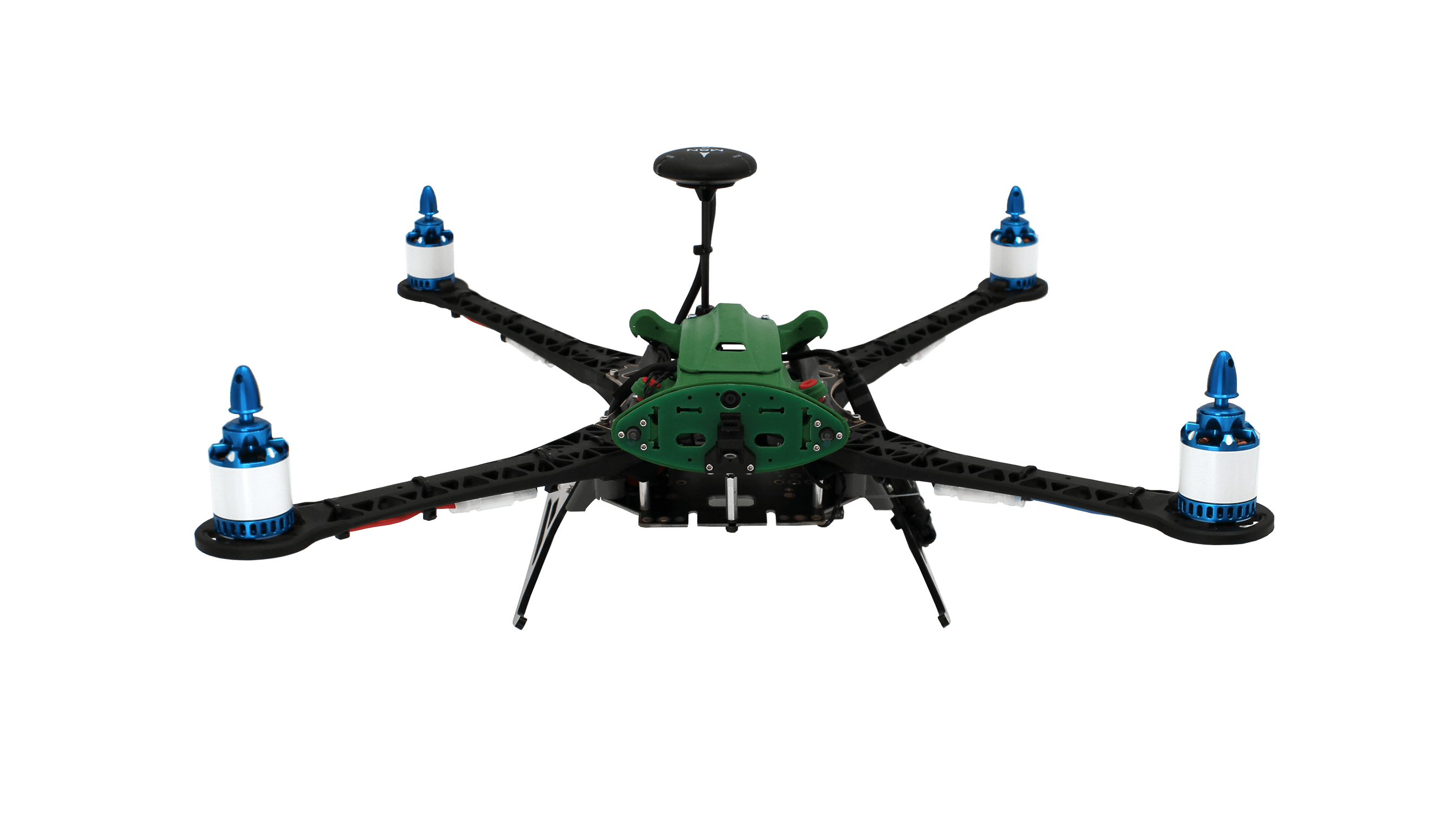

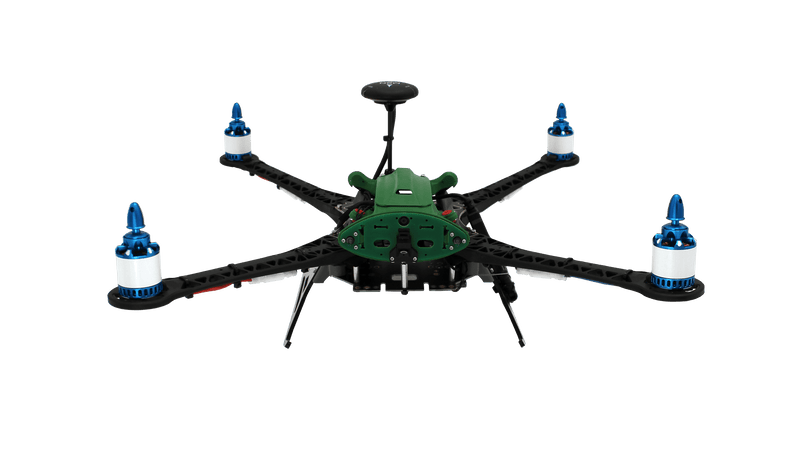

The Sentinel UAV Builder Kit provides a ready-to-assemble hardware foundation for teams building high-performance autonomous aircraft. Designed around the VOXL2 AI autopilot, it offers onboard compute, visual-inertial navigation capabilities, and a clean electronics layout through digital ESC architecture.
This kit includes four arms with pre-matched motors, a 4-in-1 ESC Base Board, and a GNSS module, enabling rapid prototyping and system integration. It is ideal for interceptor drones, ISR platforms, autonomous R&D, GPS-denied systems, and tactical UAV manufacturing.
The included VOXL2 units support edge-AI processing, PX4 flight firmware, autonomy stacks, mission planning, and multi-camera integration. With lightweight carbon arm structure and matched 10×4.5 propellers, the system offers a strong balance between thrust, efficiency and build stability.
Included Components
1 × Sentinel Arm + Motor (Set of 4)
-
4 carbon fiber arms
-
Each arm pre-mounted with brushless motor
-
Optimized for quad setup and symmetrical thrust
-
Clean wiring pathways for neat integration
1 × VOXL2 Sentinel Kit Core
-
AI autopilot and onboard compute
-
PX4-supported flight control
-
Compact form factor and low SWaP footprint
-
Suitable for GPS-denied indoor/outdoor operations

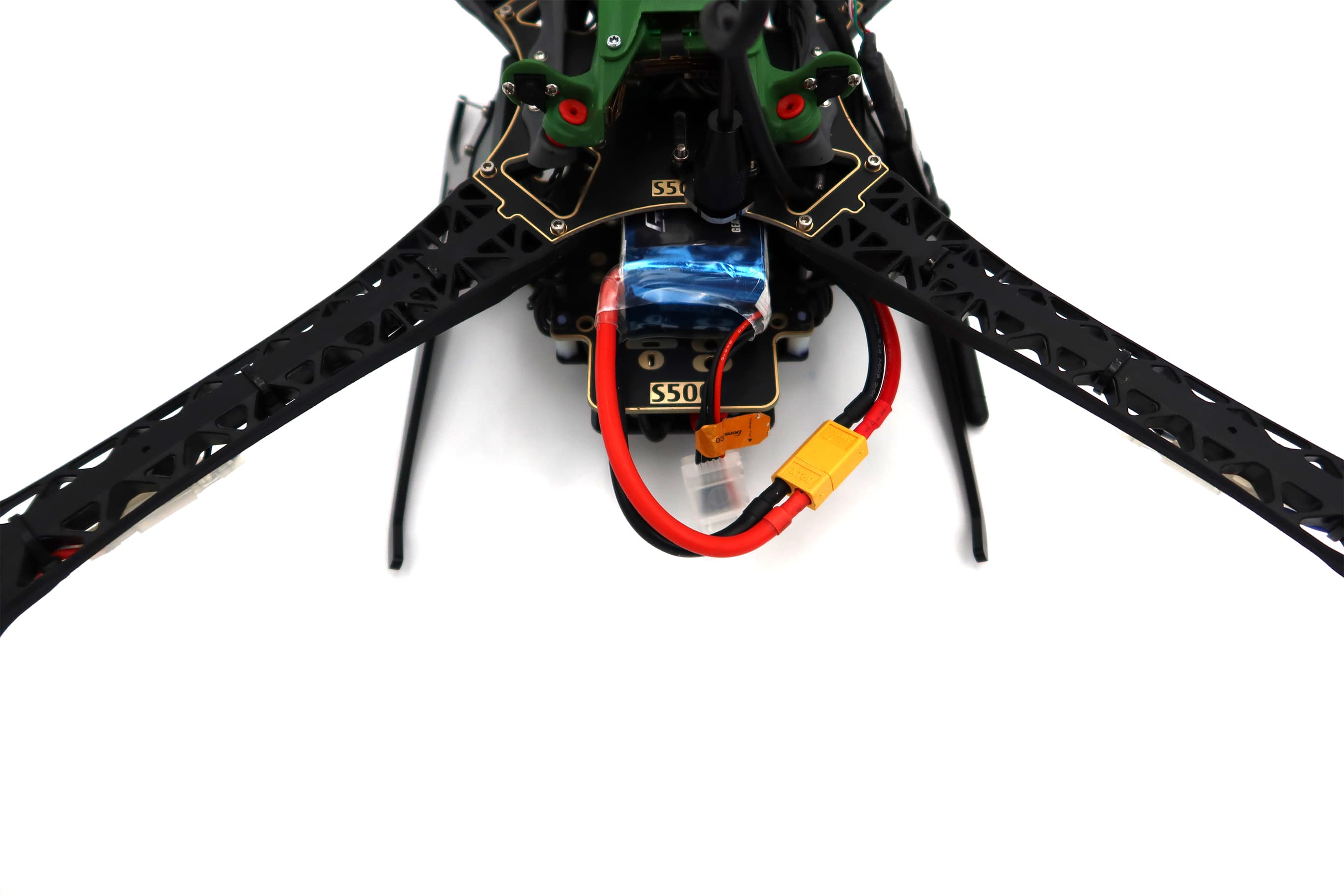

1 × ESC + Base Board
-
Integrated 4-in-1 digital ESC
-
Simplified wiring over UART
-
Reduced EMI and improved signal reliability
-
Centralized power and motor distribution
1 × VOXL2 Units
-
Dual autopilot/compute modules
-
Enables redundancy, parallel development, or dual-payload setups
1 × M8N GPS Module + Spectrum Bind Cable
-
GNSS positioning for outdoor and hybrid missions
-
Pre-termination cable for quick radio pairing
1 × VOXL2 Power Cable
-
Dedicated power harness
-
Stable regulated input supply
-
Designed for clean bus distribution
10×4.5 Propeller Sets (1 packs)
-
10-inch propellers x 4 total
-
Balanced aerodynamic profile
-
Designed for quad configuration thrust envelope
Key Advantages
-
High-end compute + autopilot integrated onboard
-
GPS-denied ready platform with multi-sensor support
-
Digital ESC architecture eliminates PWM noise
-
Modular assembly — low wiring complexity
-
Defence-grade, research-grade and OEM integrator friendly
-
Strong performance on interceptor, ISR and autonomous UAV builds
Specifications (General)
| Component | Specification |
|---|---|
| Airframe | Quad-rotor configuration (4 motors) |
| Motors | UAV-class brushless, matched to 10×4.5 props |
| ESC | Integrated digital 4-in-1 base board |
| Autopilot | VOXL2 AI-class compute + PX4 flight stack |
| GPS | M8N GNSS module |
| Props | 10×4.5 — 2 sets (4 propellers total) |
| Power | VOXL2 dedicated harness included |
| Use Case | Defence, ISR, R&D, GPS-denied, autonomous missions |
Kamikaze is dynamic fpv drone
The Kamikaze is a high-performance FPV drone built for speed and versatility. Equipped with dual day and night cameras, it captures stunning aerial footage in any lighting condition. With a top speed of 150 kmph, this drone delivers the agility and responsiveness serious pilots demand. Whether you're racing through challenging courses or filming dynamic action sequences, the Kamikaze combines raw power with precision control for an unmatched flying experience.
Below 1.5kg
150+ kmph
upto 5km
20+ mins
upto 4K/ Thermal
150+
kmph Speed
Lightning-fast performance at 180 km/h top speed. Built for thrill-seekers who demand extreme velocity and precision control in every flight.
20+
Mins Flight Time
Our drones deliver extended flight times that keep you in the air longer. With optimized battery systems and efficient power management.
PROMOTING MAKE IN INDIA
Inside The Box (For Drone Kits Only)*
*Images are for reference and are subject to changes (Action camera not included)
Applications
Have Questions?
What radio frequencies do military FPV drones use?
Most use 2.4 GHz or 5.8 GHz bands for video and control; advanced models may use encrypted digital links or frequency-hopping to resist jamming.
What is the typical range of a military FPV drone?
Standard range is 2–10 km line-of-sight, depending on transmitter power, antenna type, and environmental interference.
What camera resolution is offered by kamikaze?
The Kamikaze is equipped with a 4K thermal camera that delivers reliable surveillance in any lighting condition. Whether you're monitoring during daylight hours or complete darkness, the thermal imaging technology captures clear, detailed footage without relying on visible light. This makes it ideal for round-the-clock security operations where traditional cameras might struggle.
Are spare parts available for repairing the Kamikaze FPV kit?
As India's leading drone experts, we stock all essential spares for the trikaal airframe, motors, flight controllers etc. to keep you flying after crashes with minimal downtime.
What after-sales support do you offer for technical FPV issues?
Purchasing the Advik Analog or Digital kit allows you to avail a FREE technology consultation with our experts to resolve any FPV issues faced or ask any technical questions related to the drone's components, accessories or flight performance
How can I ensure the safety of my drone during flights, especially in emergency situations?
Ensuring the safety of your drone, particularly in emergencies, is crucial. One effective measure is utilising the Trainer Mode feature available on the Advik FPV drone. This mode allows an experienced pilot to take control instantly if needed, providing an added layer of safety and preventing potential accidents during the learning process. With Trainer Mode, you can confidently explore the capabilities of your drone, knowing that expert assistance is just a switch away in case of unexpected situations.
