RUSH TANK MINI PIT/25/200/500/800mW
Description
RUSH TANK MINI PIT/25/200/500/800mW
Specifications:
- Type: 5.8GHz FPV Video Transmitter (VTX)
- Input Voltage: 7-36V DC (wide range for various LiPo battery setups)
- Output Voltage: 5V 1A (can provide power to other components)
- Power Output: PIT Mode / 25mW / 200mW / 500mW / 800mW (adjustable for different needs and regulations)
- Channels: 48 Channels (RaceBand & LowRace) - Allows for multiple drones to fly in the same area without interference
- Installation Hole Size: 20x20mm (standard size for stacking with other flight controller components)
- Dimensions: 28 x 28 x 3.3 mm (compact and lightweight)
- Weight: 4.46g (without dust cover), 5.4g (with dust cover)
-
Additional Features:
- Pit Mode: Reduces power output to minimum for safe bench testing or disarming.

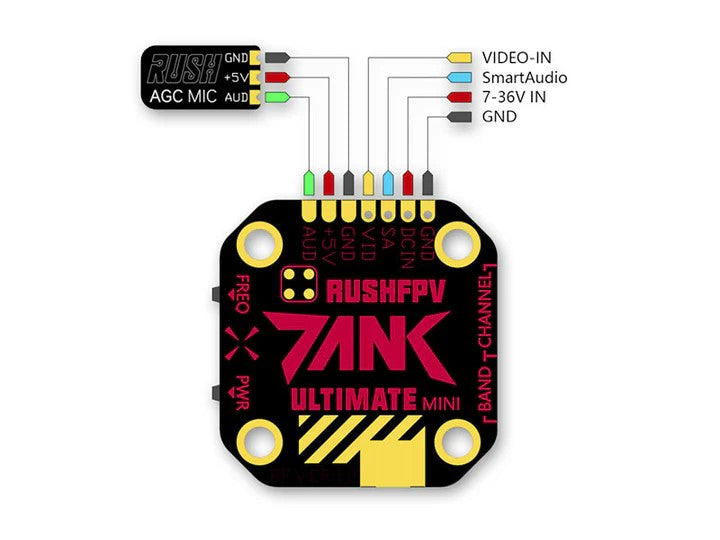

- External Audio Support: Allows microphone connection for transmitting sound along with the video feed.
- Side LED Indicators: Provides easy-to-read status updates on power and channel selection.
Applications:
- FPV (First Person View) for drone racing, freestyle flying, and long-range flights.
- Use in various multirotor drone builds where a compact and powerful VTX is needed.
Features:
- Adjustable Power Output: Offers flexibility for different flying scenarios. Lower power is suitable for indoor flying or situations with many drones nearby, while higher power allows for longer range flights.
- Wide Range of Channels: Reduces interference risk in crowded flying environments.
- Compact and Lightweight Design: Saves space and weight in your drone build.
- External Audio Support: Enhances the FPV experience by transmitting motor noise and other sounds.
- Side LED Indicators: Simplifies configuration and monitoring during flight.
Description:
The RUSH TANK MINI PIT/25/200/500/800mW is a versatile and high-performance FPV video transmitter designed for drone enthusiasts. Its adjustable power output, wide range of channels, compact size, and additional features make it a popular choice for various drone builds. The low minimum power allows for safe operation in close quarters, while the high-power option enables extended range flights.
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.

RUSH TANK MINI PIT/25/200/500/800mW
5.8GHz FPV Video Transmitter (VTX)
PIT Mode / 25mW / 200mW / 500mW / 800mW
48 Channels
20x20mm
28 x 28 x 3.3 mm
4.46g
