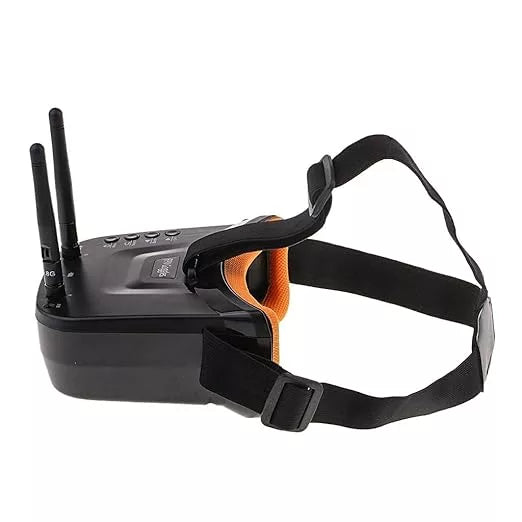

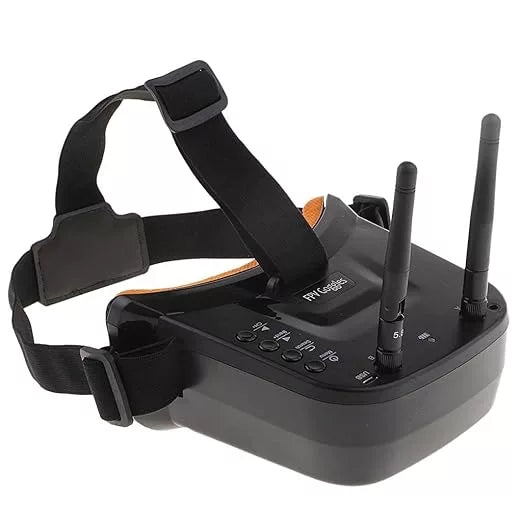

Raceband 40ch 5.8G FPV Goggles with built in 1200mAh Battery

Specification:

Model
Name	Mini FPV Goggles
LCD Screen	Screen size: 3.0 Inch
	Resolution: 480*320
	Display Ratio: 16:9
	View Angle: 6 o'clock
	Brightness: 500cd/m² with high brightness backlight LED
Video delay	Video time-delay less than 20ms

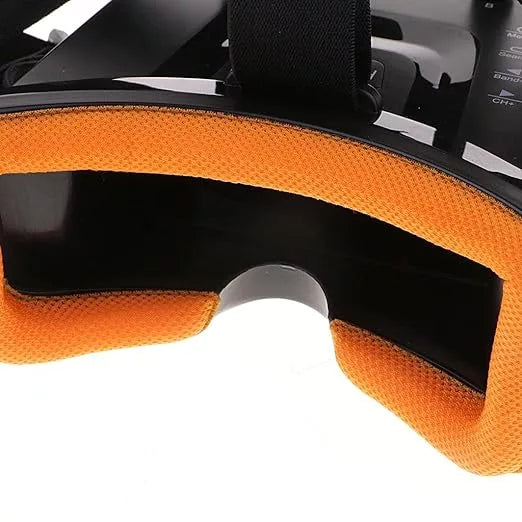

Lens	4X Fresnel Lens, 92% transparent rate no distort of light
Interface	Antenna: 2 X RP-SMA male
	USB: To charge the battery
	AV Jack: External video signals input or internals AV signal output
Languages	English and Chinese
Power Supply	Power adapter: DC5V/1A (USB interface)
	Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time
	Power Consumption: *The device operating current of 300~330mA at 3.7~4.2V; *Built-in battery maximum charge current of 500mA;
Body	Dimension: 13.5cm * 13.2cm * 6.5cm
	Weight: 180g(with headband, not included antennas)

Feature:

- Small size and light weight; - Low power consumption, Working current 300~330mA; - Double antenna reception to make the signal more stable; - RaceBand 40 channel, Auto-Searching; - 3.0 Inch 480*320 dot high brightness LCD screen; - Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand; - Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery; - Universal USB charging interface; - Real-time video return, Very low time-delay; - Bilingual menu in support of Chinese and English; - Support external video signal input; - Support AV signal output (Connect external DVR);

Package Includes:

• 1x Eachine EV800D FPV Goggles
• 1x Charger
• 1x 5.8G halfplanner antenna with SMA connector
• 1x 5.8G RHCP cloverleaf antenna with SMA connector
• 1x AV in cable
• 1x DCpower cabler to 3S balancer plug cable
• 1x Fresnel lens cleaning kit
• 1x Instruction manual (English)
