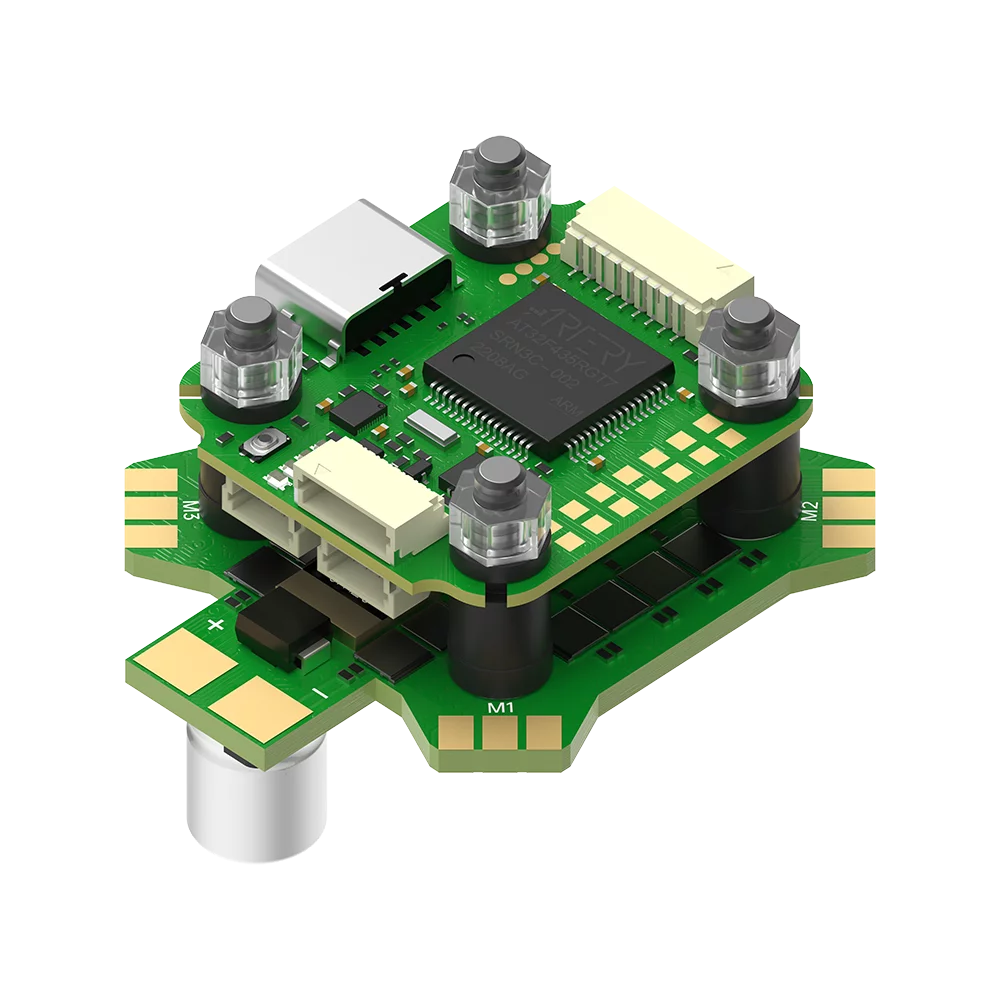

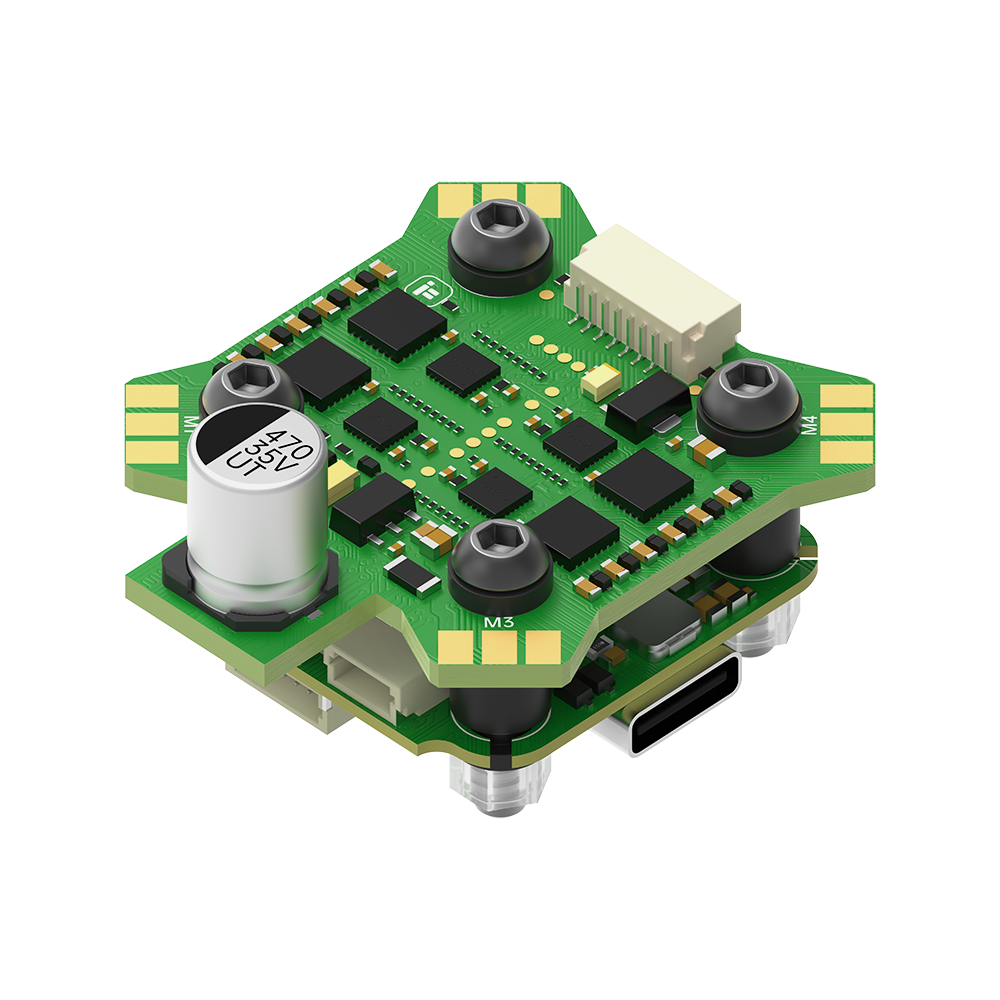

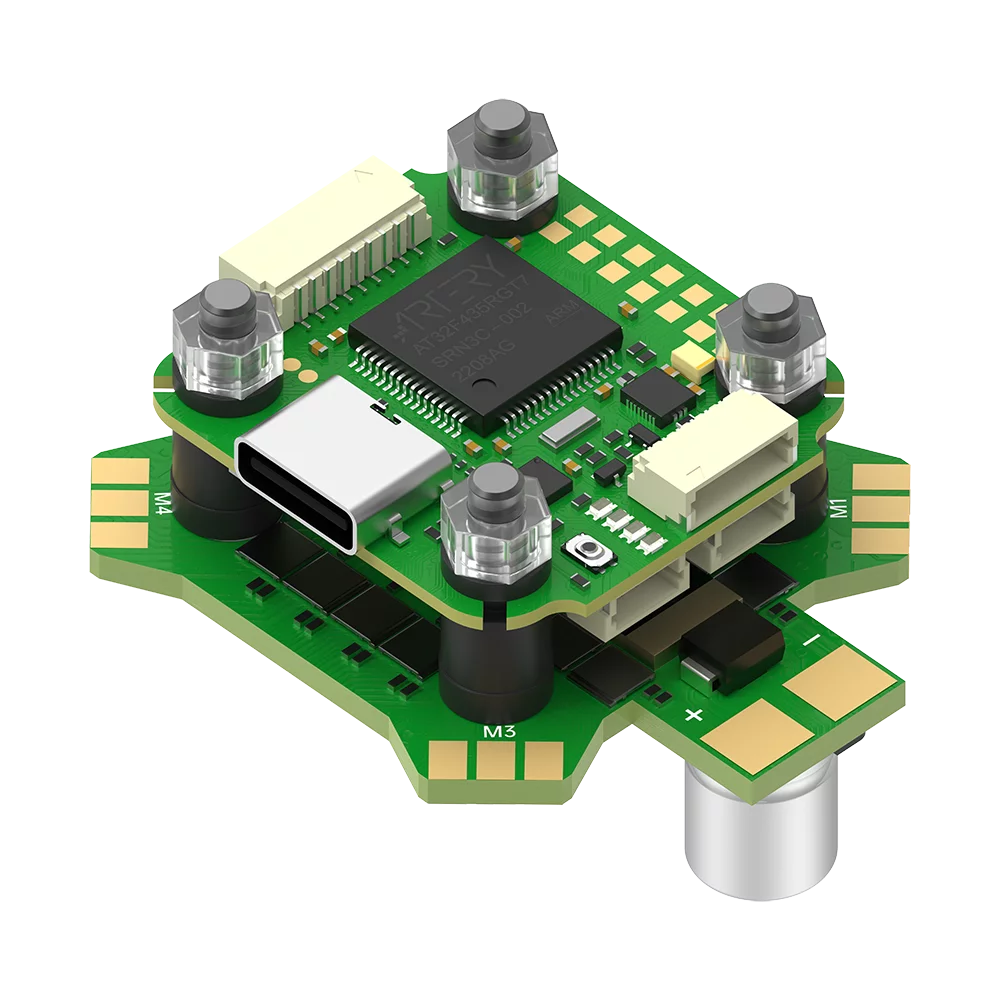

iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)

iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)

Name: iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)
Brand: insideFPV
SKU: 731718
Price: 7500.0 INR
Availability: OutOfStock

The iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC) is a great choice for small FPV drones. It is powerful, lightweight, and easy to use. It is also compatible with a variety of firmware options.

Rs. 7,500.00

Sold out

Description

FC Specifications MCU: AT32F435RGT7 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 16MB (Blackbox flash) […]

Only 2 left in stock

Categories: Stacks, ElectronicsSKU: 731718

FC Specifications

MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A

ESC Specifications

Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
Current rate: 200
BEC: No
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)

Packing List

1 x BLITZ Mini ATF435 Flight Controller

1 x BLITZ Mini E55S 4-IN-1 2-6S ESC

1 x Power cables & ESC signal wires

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Return & Refund

Share some content to your customers about your products.

Shipping & Delivery

Delivery time is between 3-5 business days.

*Images are for reference only. Actual product may vary from the image.

FEATURES

Powerful F722 MCU

Built-in OSD

55A 4-in-1 ESC

Supports 2-6S LiPo batteries

Compact and lightweight design

iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)

The iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC) is a compact and lightweight flight controller and electronic speed controller (ESC) stack that is perfect for small FPV drones, such as whoops and cinewhoops. It features a powerful F722 MCU, a built-in OSD, and a 55A 4-in-1 ESC.

Weight:

5g

Dimensions:

30.5mm x 27mm

Blackbox:

8MB

Gyro:

MPU6000

MCU:

F722

What's Inside the box ?

1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC

In Applications Like

Whoop drones

Cinewhoop drones

Small FPV drones
