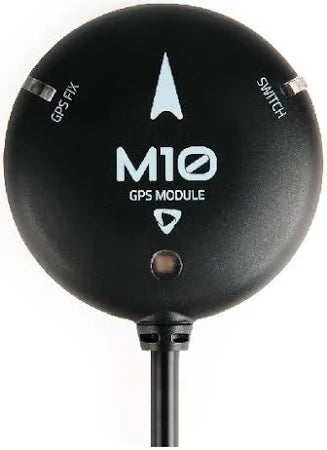

Holybro M10 GPS Standard GPS (GHR 1.25mm 10pin)
Holybro M10 GPS Standard GPS (GHR 1.25mm 10pin)
insideFPV

Holybro M10 GPS Standard GPS (GHR 1.25mm 10pin)

Holybro M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series, a concurrent GNSS receiver that can receive and track multiple GNSS systems

Sale priceRs. 4,699.00
Sold out

*Images are for reference only. Actual product may vary from the image.

FEATURES

Newest Ublox 10th Gen GNSS

Fast & Accurate Positioning

High-gain 25*25*4mm antenna

Holybro M10 GPS Standard GPS (GHR 1.25mm 10pin)

  • Holybro M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series, a concurrent GNSS receiver that can receive and track multiple GNSS systems.
  • Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou can be received concurrently.
  • It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch.
  • There are 3 different connector options for different purposes.
  • This module ships with a baud rate of 115200 5Hz.
  • The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.
  • It features active circuitry for the ceramic patch antenna, a rechargeable backup battery for warm starts.
  • Firmware Support for M10 GPS : PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.

Frequency Bands:

GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1.

Navigation Update Rate:

Up to 25 Hz (single GNSS) Up to 10 Hz (4 concurrent GNSS)

Accuracy:

2.0m CEP

Multi-constellation support:

GPS, Galileo, GLONASS, BeiDou, QZSS

Input Voltage:

4.7-5.2V

Power Consumption:

Less than 200mA @ 5V
What's Inside the box ?
  • 1x M10 GPS Module
  • 1x Fixed Carbon Fiber GPS mount

In Applications Like

Drones and Unmanned Aerial Vehicles (UAVs)

Robotics

Geographic surveying
