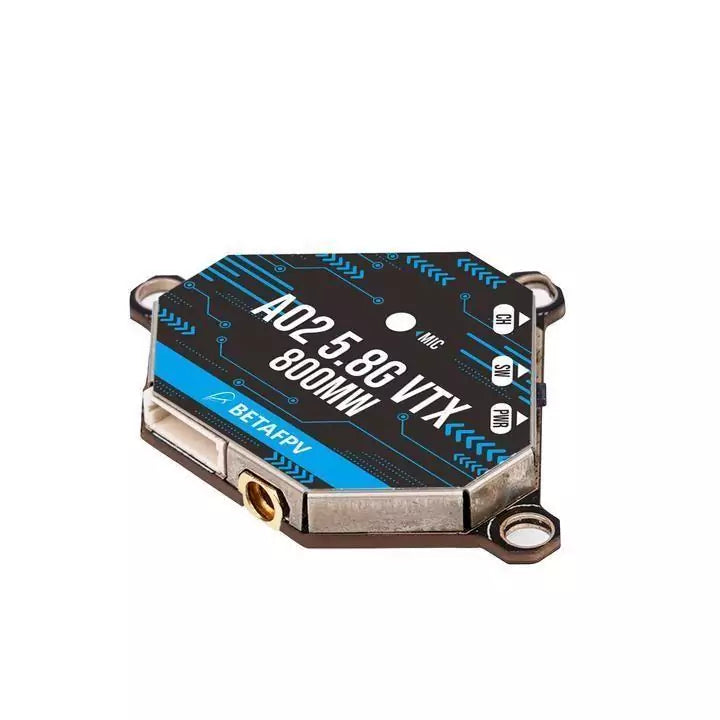

BetaFPV A02 25-800mW 5.85G VTX
Description
Bullet Point
- A02 VTX is a high-quality 5.8GHz VTX with strong anti-interference ability and stable transmission. Comes with adjustable 25mW/200mW/500mW/800mW output power, allowing the perfect amount of output power to be selected based upon your FPV needs.
- With the 800mW output power, pilots can fly drones up to 1100 meters away, which offers a perfect FPV solution for pilots in search of long-range flight.
- At 5.26g of overall weight with a small-size layout, A02 VTX is perfectly suitable for Whoop and Toothpick Quad with a 26*26mm mounting hole, like X-Knight series, Beta85X/95X series and TWIG series drones without any reduction in performance or power.
- Come with a built-in microphone, A02 VTX provides a real-time sound transmission, pilots can get a more vivid flight experience.
- Featuring a fixed mounting hole and 6-pin connector, less solder work needed, which makes it’s super easy to install.
Specification
- Item: A02 5.8G VTX
- Output power: 25/200/500/800mW (adjustable)
- Supply voltage range: 7-35V
- Weight: 5.26g (excluding antenna)
- VTX size: 27.3x27.3x4.5mm

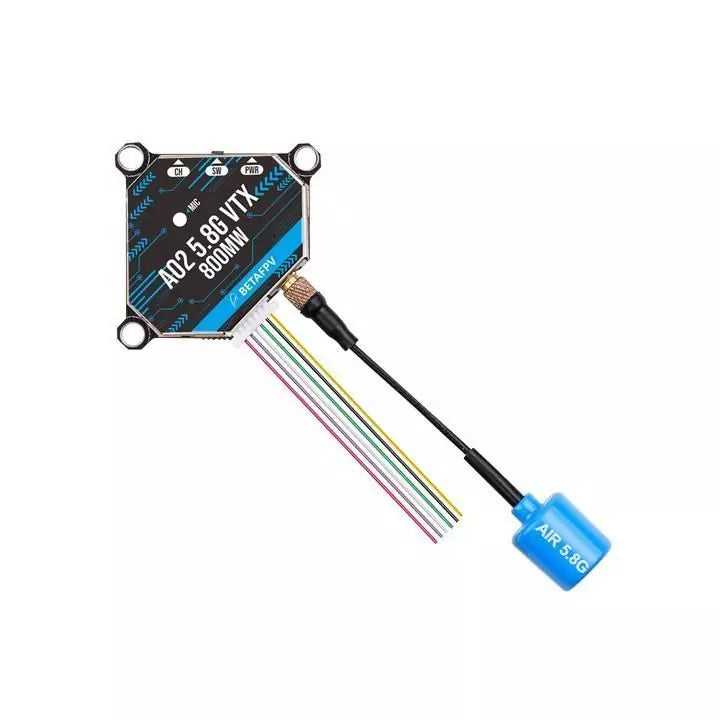

- Antenna: Air Antenna(MMCX Straight)
- Frequency: 5.8GHz 37 channels, with Raceband: 5645~5945MHz
- Channel SEL: SmartAudio
- Modulation type: FM
- Channel Indicate: 3 LEDs
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃~ 60℃
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.

BetaFPV A02 25-800mW 5.85G VTX
Sale priceRs. 4,512.56
Regular priceRs. 0.00 (/)
BetaFPV A02 25-800mW 5.85G VTX
Weight:
5.26g
Dimensions:
27.3x27.3x4.5mm
Input Voltage:
7-35V
Frequency:
5.8GHz
Antenna port:
50 Ω
