Certainly! Let’s explore the GEPRC ELRS Nano Receiver and the iFlight ExpressLRS ELRS Receiver, both of which are compatible with ELRS (ExpressLRS) and CRSF (Crossfire) systems:
-
GEPRC ELRS Nano Receiver:
- The GEPRC ELRS Nano receiver is part of the new generation of remote control systems developed based on the ExpressLRS open-source project.
- It sets new standards for long-range connection, low latency, and a maximum refresh rate of 500Hz.
- Available in 915MHz FCC, 868MHz EU, and 2.4GHz ISM versions.
- Key Specifications:
- Size: 16.8mm x 10mm
- Weight: 0.6g (receiver only)
- Input Voltage: 5V
- Antenna Connector: IPEX1
- Features:
- Small size and lightweight design.
- Supports WIFI upgrade firmware.
- Compatible with GEPRC ELRS-series products or other ELRS-compatible devices.
- Simple operation.
- Package Includes:
- 1 x Receiver

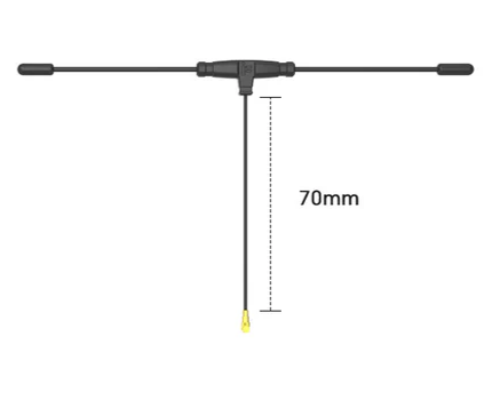

- 1 x T antenna
- 2 x Heat shrink tube
- 4 x Silicone cable (black, red, yellow, green)
- 1 x Pin (4-pin)
- 1 x Instruction manual
-
Binding Process:
- Power the receiver on and off three consecutive times within a 1-second interval.
- The receiver’s LED will double flash, indicating it has entered binding mode.
- Make your RF Tx module or radio transmitter enter binding status. Once the LED status changes to solid light, the binding is successful.
- Note: Some flight controllers may cause the receiver TX line to go low at power-on, resulting in a solid LED. This is not a failure but a known issue that can be resolved by following specific methods1.
-
iFlight ExpressLRS ELRS Receiver:
- Frequency Bands: 868MHz EU/915MHz FCC and 2.4GHz ISM
- Telemetry Power: 17dBm (868/915MHz) / 20dBm (2.4GHz)
- Dimension: 12mm x 19.5mm
- Connector: SH1.25 (including 30mm wire, pre-soldered)
- Interface: 5V GND RX TX
- Input Voltage: 5V
- Protocol: CRSF
- Weight: 1.2g
- Ideal for long-range FPV applications and compatible with ExpressLRS systems.
Remember to choose the receiver that best suits your FPV setup and enjoy extended range and reliable connectivity! 🚁🌐
For more details, you can find the GEPRC ELRS Nano Receiver on the GEPRC website and the iFlight ExpressLRS ELRS Receiver on the Danger Crew website12.
