VOXL 2 MDK-M0054-1-01-C11 – Autonomous AI Autopilot (Front/Rear Stereo + High-Res + Tracking Sensors) – PX4 + QRB5165
Description

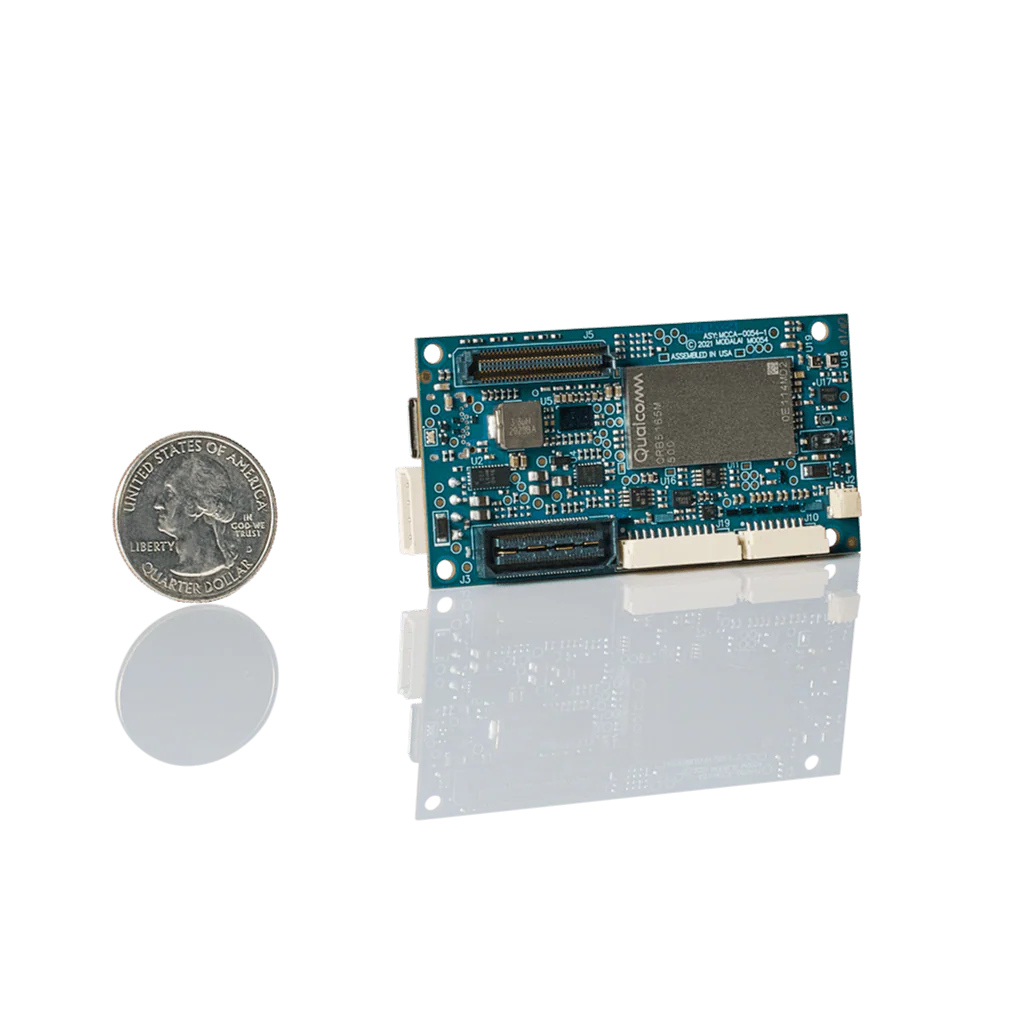

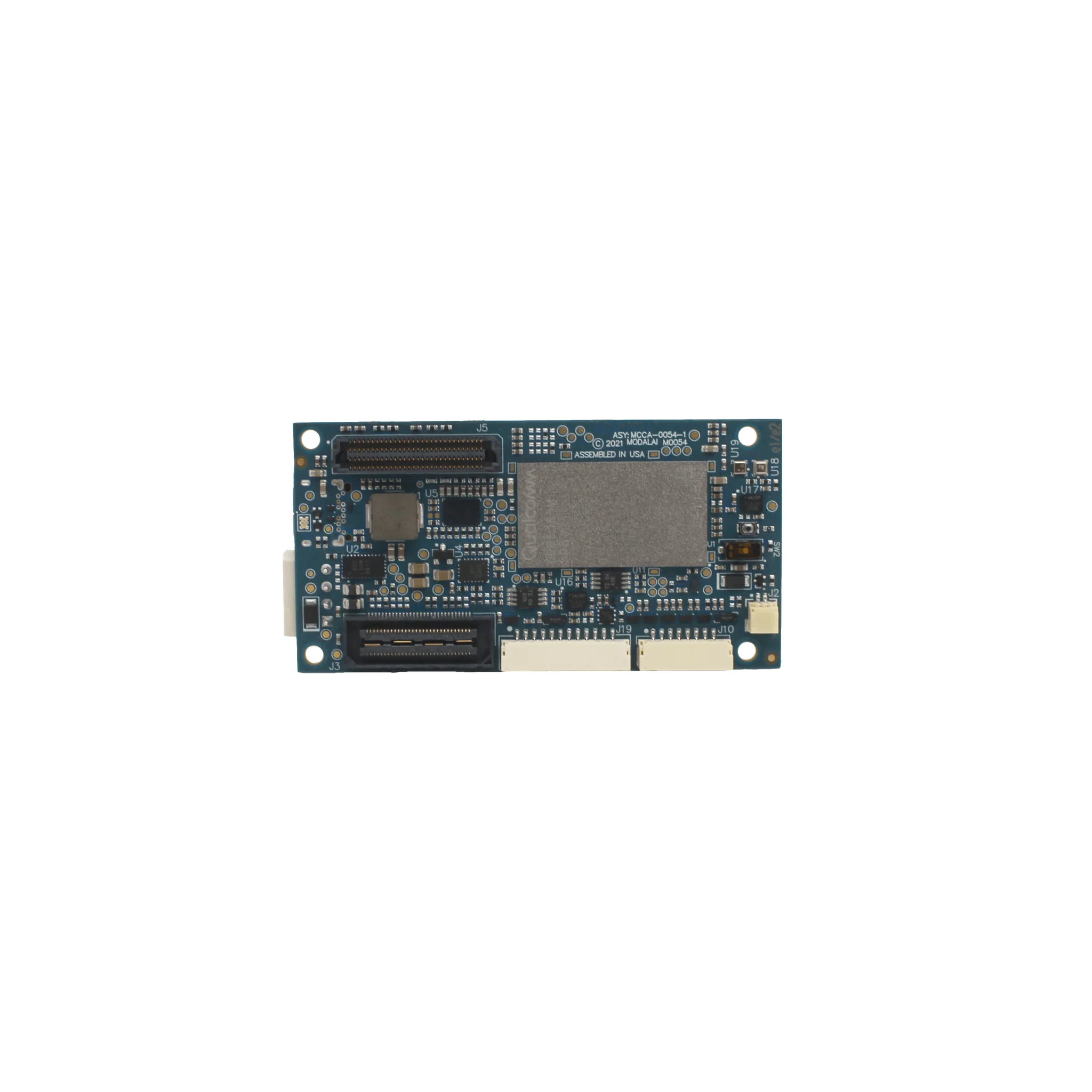

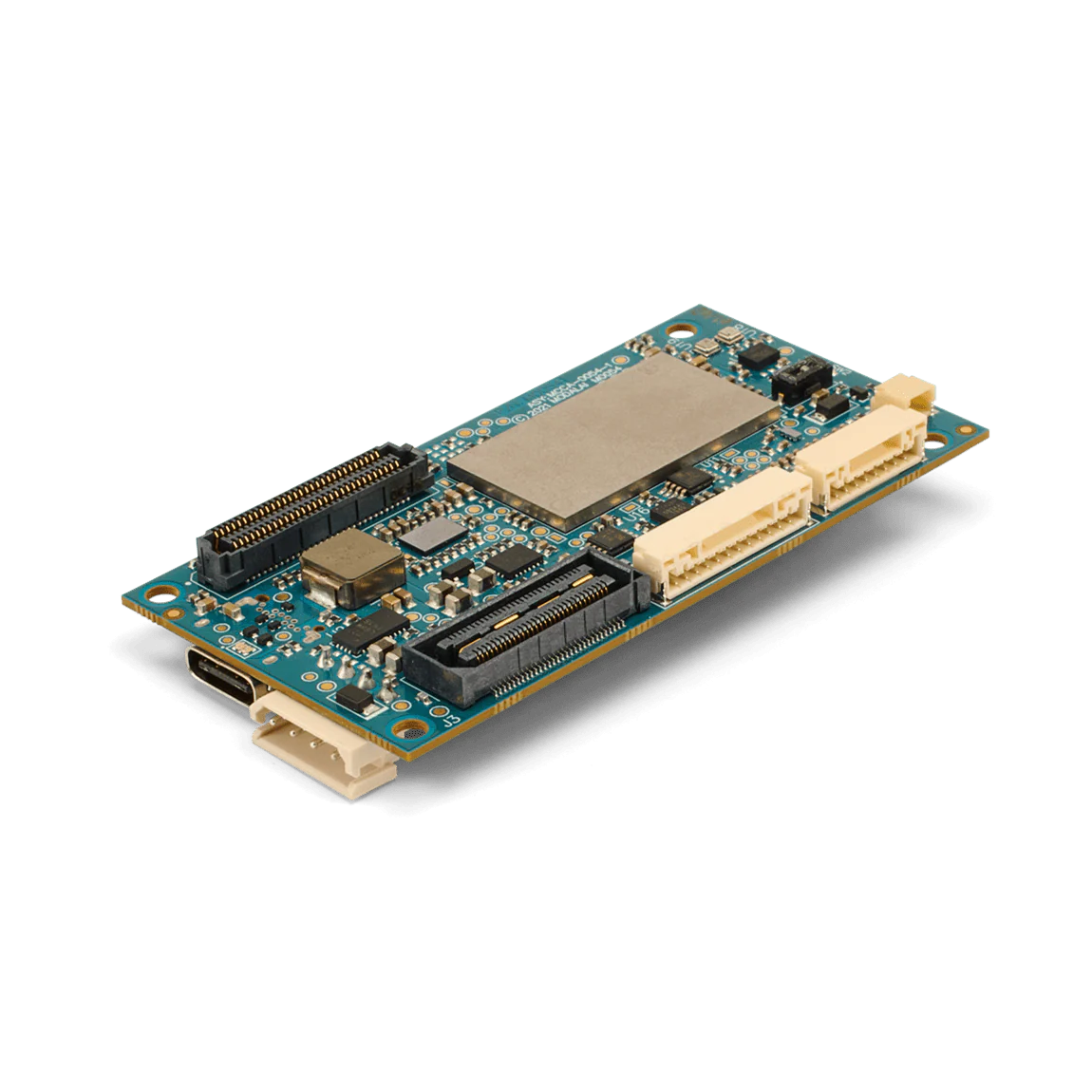

The VOXL 2 MDK-M0054-1-01-C11 kit is an advanced autopilot system integrating edge AI compute, vision sensors and PX4 flight control. Built on the Qualcomm QRB5165 robotics platform, it enables onboard machine perception, visual-inertial navigation, autonomous decision making and robust indoor or GNSS-denied flight.
This configuration includes six MIPI camera inputs arranged as:
-
Front stereo pair for forward depth and obstacle detection,
-
Rear stereo pair for backward depth coverage,
-
High-resolution camera for mapping, ISR and computer vision,
-
Tracking camera for stable VIO and motion estimation.
Its compact form factor, high compute capabilities and secure supply chain make it ideal for defence UAVs, surveillance drones, interceptor platforms and advanced R&D systems.
Key Features
-
Qualcomm QRB5165 SoC with CPU, GPU and NPU acceleration.
-
8 GB LPDDR5 RAM and 128 GB onboard flash storage.
-
Integrated PX4 autopilot with onboard IMU and barometric sensors.
-
Supports up to six MIPI-CSI cameras simultaneously.
-
Stereo vision front and rear for obstacle avoidance and navigation.
-
High-resolution sensor for mapping and ISR.
-
Tracking/global-shutter camera for accurate motion estimation.
-
Linux-based system with ROS / ROS2, MAVROS, Docker, OpenCV and custom autonomy stacks.
-
Compact and lightweight — optimized for UAV and robotics installation.
-
Suitable for GPS-denied missions, research, ISR and defence applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| SoC | Qualcomm QRB5165 (multi-core CPU + GPU + NPU) |
| AI Performance | Up to ~15 TOPS depending on workload |
| RAM | 8 GB LPDDR5 |
| Storage | 128 GB Flash |
| OS | Embedded Linux with autonomy stack support |
| Flight Control | Integrated PX4 autopilot |
| Sensors | Support for up to 6x MIPI CSI cameras |
| Included Cameras | Front stereo, Rear stereo, High-resolution, Tracking |
| Size | approx. 70 mm x 36 mm |
| Weight | approx. 16 g (board only) |
| Use Cases | ISR, autonomous drones, GPS-denied, SLAM, R&D, defence |
What’s in the Box (C11 Kit)
-
VOXL 2 mainboard
-
Power module and input harness
-
Front stereo camera set
-
Rear stereo camera set
-
High-resolution camera module
-
Tracking camera module
-
CSI interposer cables and flex harnesses
-
ESD-safe packaging and documentation
