TRIKAAL MAX
Surveillance + Tactical

TRIKAAL MAX

Heavy-Payload, Long-Endurance ISR Platform

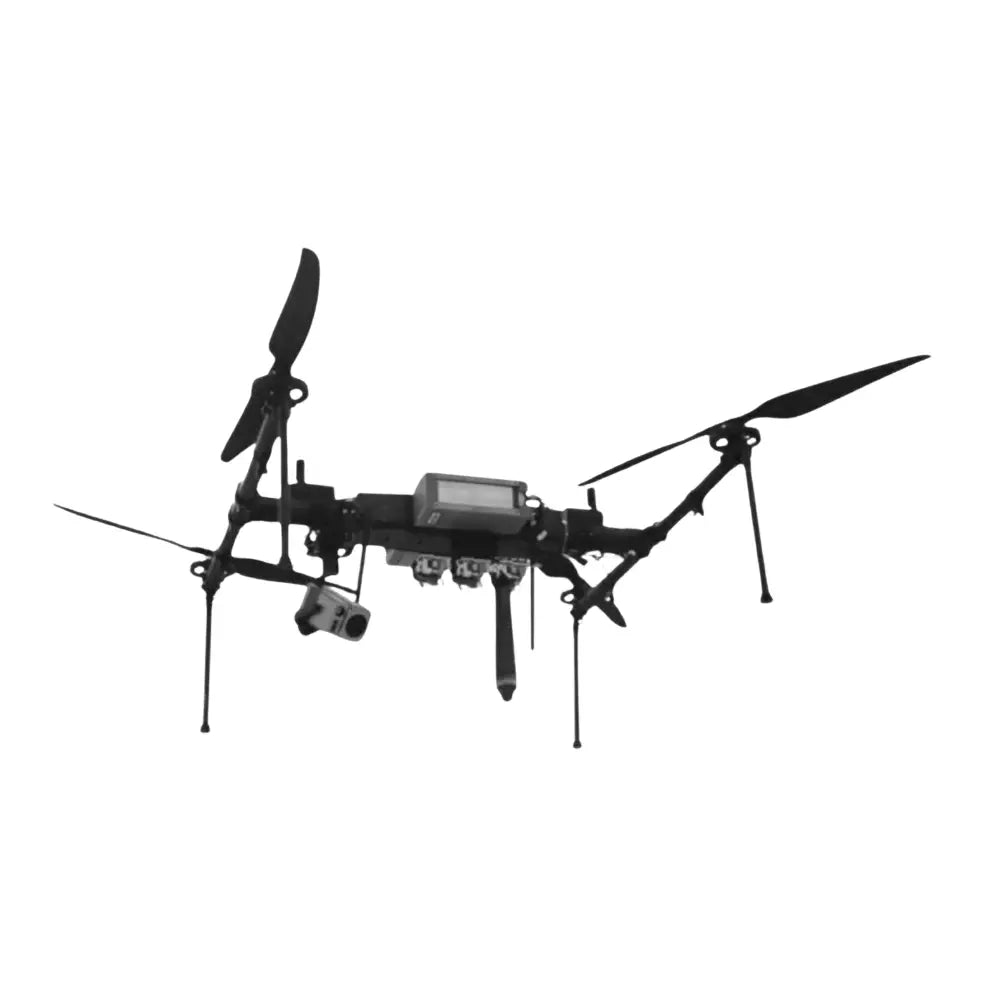

Trikaal Max is insideFPV's heavy-payload, long-endurance ISR platform — up to 90 minutes airborne, 8 kg of payload capacity, and 30× optical zoom, with grenade-dropper capability for dual-role missions.

In stock
Connect to Advisor

Specifications

Altitude
up to 1,500 m AGL
Range
up to 10 km
Max Payload
8 kg
Speed
45 km/h
Max Flight Time
90 mins (15+ mins with full payload)
Zoom
30× Optical
Deployment Time
Under 5 mins (with camera payload)
Operating Temp
−35°C to 55°C

Key features

Advanced Camera & Battery System: High-endurance power and imaging system for extended missions.
Heavy Payload ISR Missions: 8 kg payload capacity supports demanding, long-range ISR operations.
Grenade Dropper Capable: Swappable grenade-dropper payload within the existing 8 kg capacity, for dual-role missions.

Applications

Battlefield Ready

Tested in multiple terrains — from Ladakh at 17,000 ft to the Thar Desert.
DRY HEAT
55°C · 2 hrs
COLD
-35°C · 2 hrs
DAMP HEAT
40°C · 93% RH · 12 hrs
DUST (IP5X)
8 hrs exposure
WATER (IPX3)
10 min spray
SHOCK
15g · 18 shocks XYZ
VIBRATION
10Hz–2000Hz · 20 min/axis
CRASH
Survives 50 ft drops
WIND
Operates in 40 km/h
Individual results vary from drone to drone. Tested at the National Accreditation Board for Testing and Calibration Laboratories (NABL).
