SucceX Mini 45A 2-6S BLHeli_32 Dshot600 4-in-1 ESC
Description

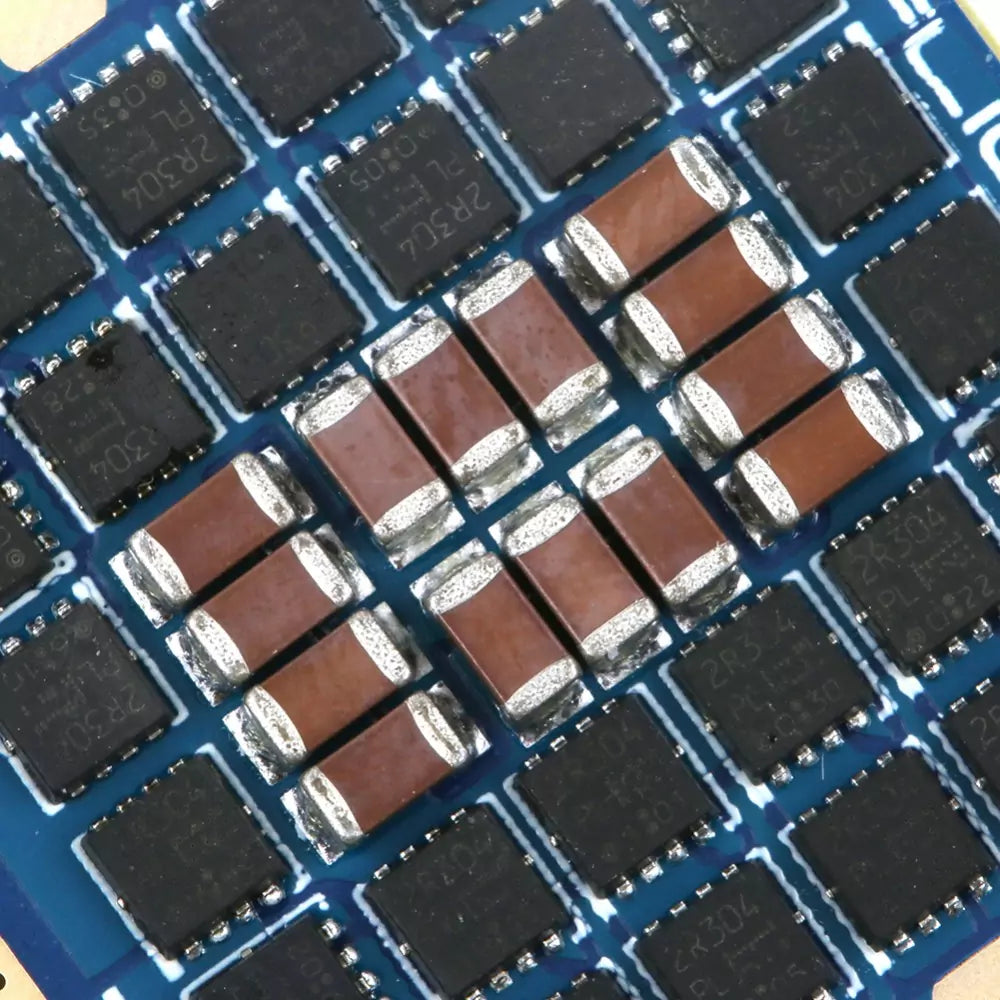

SucceX Mini 45A 2-6S BLHeli_32 Dshot1200 4-in-1 ESC Features • 4x F051 MCU processers • TDK MLCC Low ESR ceramic capacitors • 6 layers single-board stacking PCB board • 48Mhz Runs BLHELI 32.X Firmware • 2-6s LiPo battery compatible • 45A per channel, 55A burst • Onboard current sensor • Supports DShot150/300/600/MultiShot/OneShot etc. Specifications • Input: 2-6s LiPoly • Constant: 45 Amps (per channel) • Burst: 55 Amps (per channel) • BEC: No • BlHeli32 telemetry: Yes • Dimensions: 31x29.5mm • Mounting Holes: 20*20mm φ3mm • Weight: 6.7g (without motor wires) • Target: iFlight-F051-4IN1 Package Includes • SucceX Mini 45A 2-6S BLHeli_32 Dshot 600 4-in-1 ESC • 1x 8pin Harness • 1x 35v 470uF Capacitor • 1x XT60 Connector
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.

SucceX Mini 45A 2-6S BLHeli_32 Dshot600 4-in-1 ESC
6.7g (without motor wires)
20*20mm φ3mm

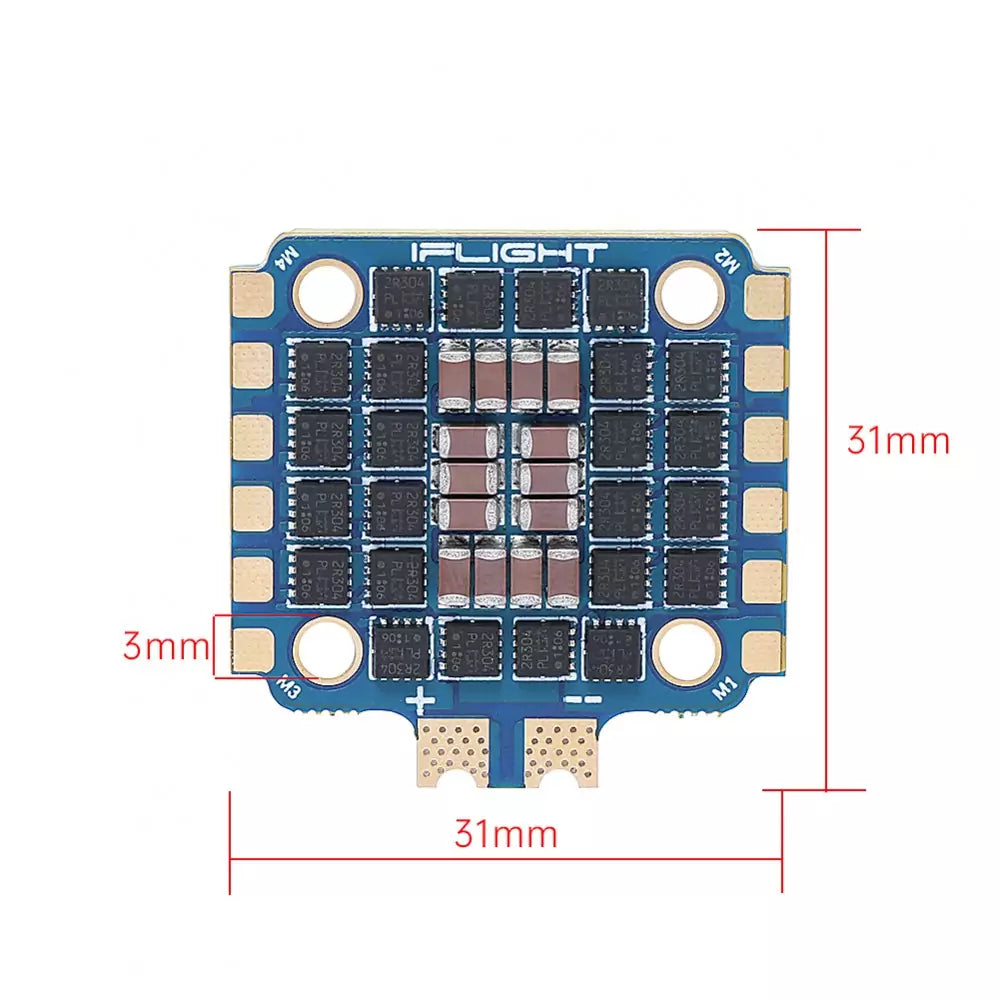

31x29.5mm
Yes
55A (per channel)
45A (per channel)
