SkyStars Mini Fly Stack - F722 Mini HD Pro FC + KM40 40A 3-6S BLHeli_32 4-in-1 ESC - 20x20
Description
About this product
The SkyStars Mini Fly Stack features an F722 Mini HD Pro flight controller and a Kramam KM40 40A BLHeli_32 4-in-1 ESC with a 20x20 mounting pattern!
Features
- F722 Mini HD Pro Flight Controller
- Betaflight OSD & DJI HD OSD
- 20x20 Mounting Pattern
- 3-6S LiPo Support

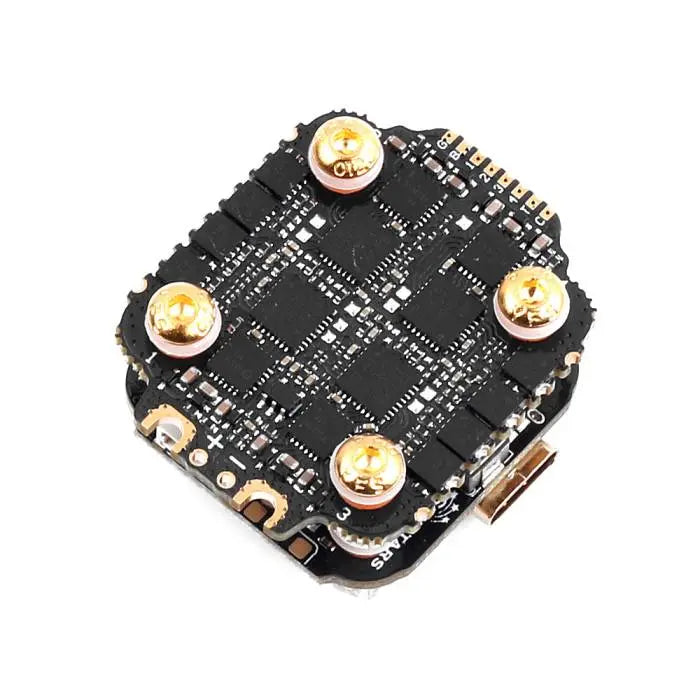

- KM40 40A ESC
- Barometer
Specifications

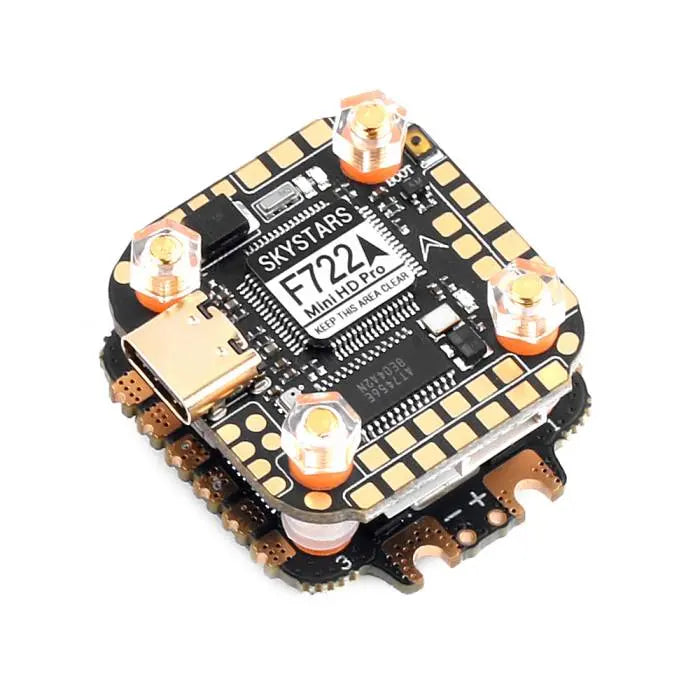

F722 MINI HD PRO FLIGHT CONTROLLER
- Mounting Holes: Standard 20mm/M3 square to center of holes
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- MCU: STM32F722RGT6 216MHz
- Firmware: SKYSTARS F7HDPro
- Dimensions: 35x28x7mm
- Input Voltage: 3-6S Lipo
- IMU: BMI270 (SPI)
- Buzzer Pad: YES
- Barometer: YES
- 5V 2A & 10V 2A
- Blackbox: 16MB
- Weight: 4.8g
- Mounting hole : 20X20 mm/M3
- Product size: 31*36*3.9mm
- Support : Dshot 600/1200
- Peak Current: 50A≥ 10S
- Input voltage: 3-6S LiPo
- Firmware: BLHeli_32
- Con.Current: 40A
- Weight: 7.8g
- BEC: No
Includes
- 1x SkyStars Mini Fly Stack - F722 Mini HD Pro FC KM40 40A 3-6S BLHeli_32 4-in-1 ESC - 20x20
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.
SkyStars Mini Fly Stack - F722 Mini HD Pro FC + KM40 40A 3-6S BLHeli_32 4-in-1 ESC - 20x20
Sale priceRs. 9,999.00
Regular priceRs. 0.00 (/)
SkyStars Mini Fly Stack – F722 Mini HD Pro FC + KM40 40A 3-6S BLHeli_32 4-in-1 ESC – 20×20
Weight:
4.8g
Blackbox:
16MB
Input Voltage:
3-6S Lipo
Dimensions:
35x28x7mm
IMU:
BMI270 (SPI)
MCU:
STM32F722RGT6 216MHz
