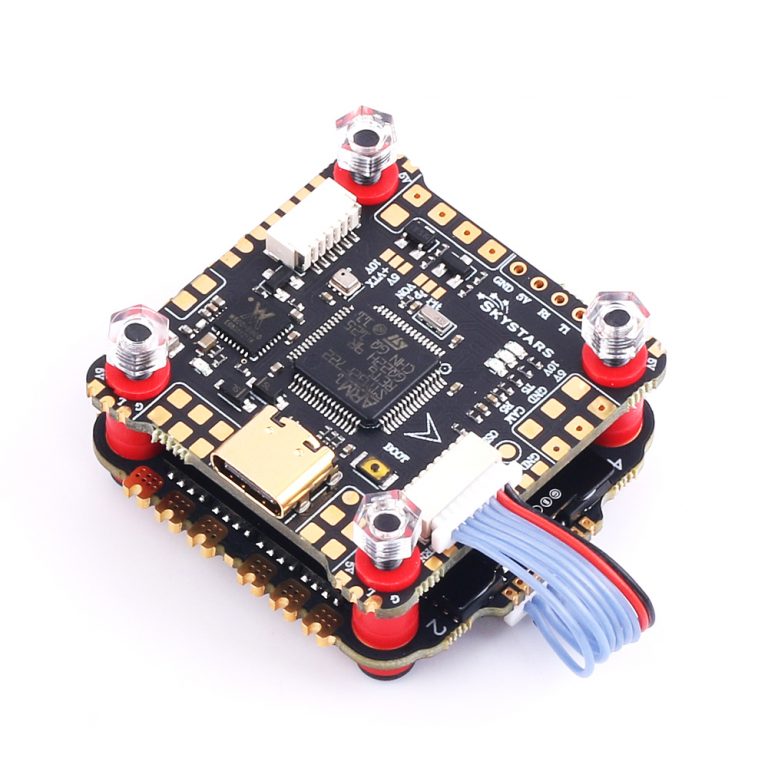

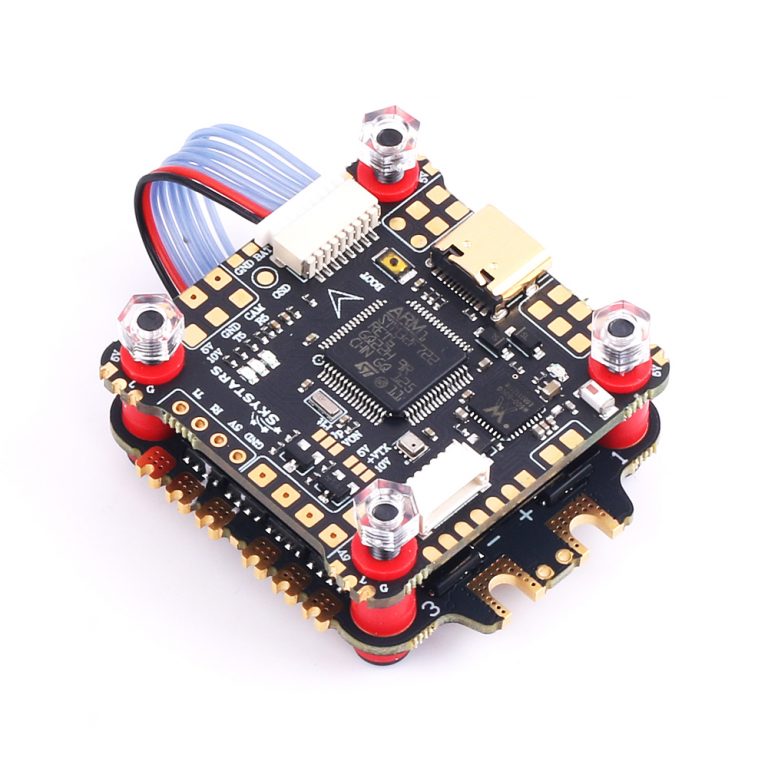

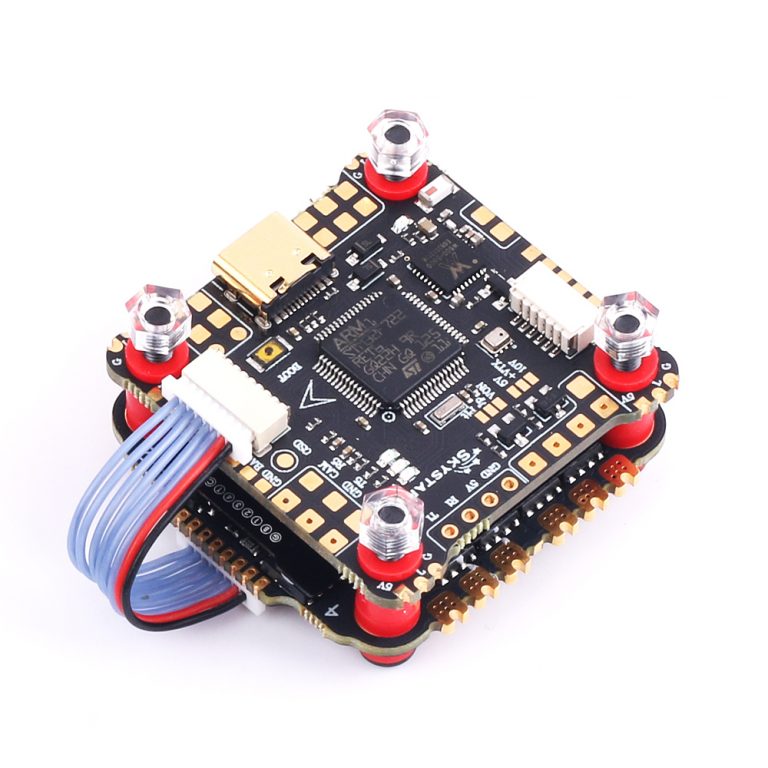

SkyStars F7 HD Wi-Fi + KO45 3-6S BLHeli_32 4-In-1 ESC 30×30 Stack
Description
SkyStars F7 HD Wi-Fi KO45 3-6S BLHeli_32 4-In-1 ESC 30×30 Stack Features and Specifications:
Excellent over-current capability By adopting the best PCB material and PCB production process. Such as the application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with a 6-layer layout design of the board, compared with others that commonly use 4 layers, allowing it to withstand higher current. Extreme stability and support of 6S LiPo battery By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan. Plus advanced lead-free SMT Processing technology. It makes ESC fully support the 6s battery and get better performance. Better Control Performance Flashed with the latest BLHeli_32 firmware in the factory, support telemetry functions (including voltage, RPMS, & current )
Specifications:
- Mount: 30.5mm x 30.5mm
- Supports 3-6S
- ESC weight: 12g
- ESC onboard current sensor.
- Continuous current: 45A
- Peak current [5 seconds]: 55A
- Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
- MCU: STM32F051 Operation frequency: 48MHz
- Firmware: BLHeli_32
- BEC: No
SkyStars F7 HD Wi-Fi F722 Flight Controller
Specifications:- MCU: STM32F722RGT6 216MHz 32BIT
- IMU: MPU6000 (SPI)
- Barometer: Yes
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6,)
- Blackbox: 8MB
- LED indicator: Blue for FC Status, Green 9V, Red 5V
- WIFI: SpeedyBee APP target name SKYSTARS F7
- Input voltage: 3-6S LiPo(11.1V~25V)
- LED Controller: 4 corners LED interface to support BF led
- RSSI Pad: YES
- Buzzer Pad: YES
- CURR Pad: YES
- Smart audio: YES
- BEC 5V 2.5A & 10V 2.5A(Max 3A)
- Firmware: SKYSTARS F7HDPRO
- Dimensions: 38.5x40x6.2mm
- Mounting Holes: Standard 30.5mm square to the center of holes
- Weight: 6.6g
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.
SkyStars F7 HD Wi-Fi + KO45 3-6S BLHeli_32 4-In-1 ESC 30×30 Stack
Sale priceRs. 8,999.00
Regular priceRs. 0.00 (/)
SkyStars F7 HD Wi-Fi + KO45 3-6S BLHeli_32 4-In-1 ESC 30×30 Stack
Weight:
6.6g
Dimensions:
38.5x40x6.2mm
ESC weight:
12g
Mount:
30.5mm x 30.5mm
Blackbox:
8MB
Microcontroller:
STM32F722RGT6
