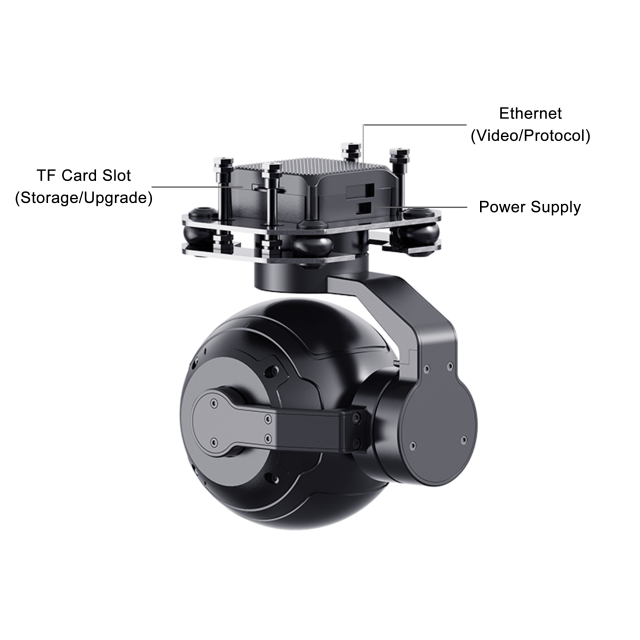

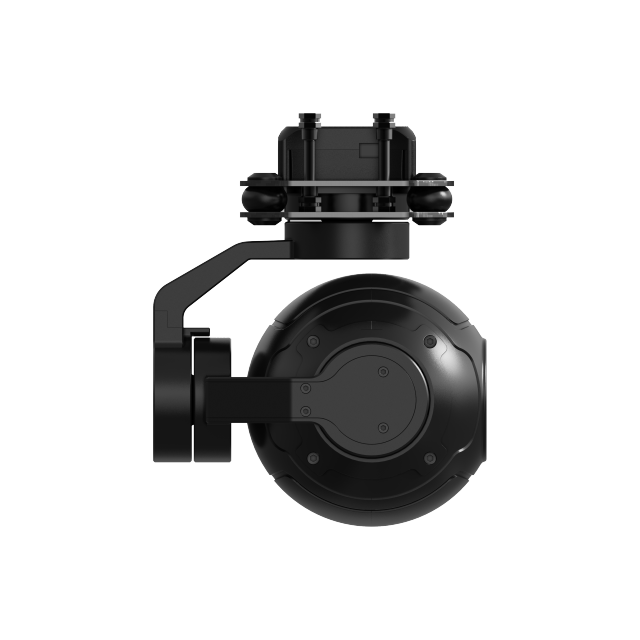

SIYI ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera
Description
Overall
Model: ZR10 Video Output Port: Ethernet Control Signal Input Port: S.Bus / PPM / UART / UDP Working Voltage: 11 to 25.2 V Power Consumption: 3 W Working Temperature: -10 ~ 50 ℃ Waterproof Level: IP4X
Dimension: 121*101*78 mm
Weight: 381 g
Gimbal
Angular Vibration Range: ±0.01° Controllable Pitch Angle: -90° to 25° Mechanical Pitch Angle: -135° to 45° Controllable Yaw Angle: -45° to 45° Mechanical Yaw Angle: -90° to 90°
Camera
Lens: 10X Optical Zoom (30X Hybrid Zoom)
Focal Length: 5.15±5% to 47.38±5% mm Minimum Focus Distance: 200 mm Image Sensor: 1/2.7”-inch, 4 MP effective resoultion
Aperture: F1.8 to F2.5
FOV: Diagonal 79.5°, Horizontal 71.5°
TF Recording Resolution: 2K (2560*1440) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32 Image Format: JPEG Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart) Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Mark Features marked with “*” are in development and can be updated later by firmware.
Return & Refund
Share some content to your customers about your products.
Shipping & Delivery
Delivery time is between 3-5 business days.
*Images are for reference only. Actual product may vary from the image.
SIYI ZR10 2K 4MP QHD 30X Hybrid Zoom Gimbal Camera
381 g
121*101*78 mm
Wi-Fi, USB-C
JPEGMP4 (recorded in H.265, *auto converted to MP4 after restart)
1/2.7-inch CMOS
4MP (2560x1440)
