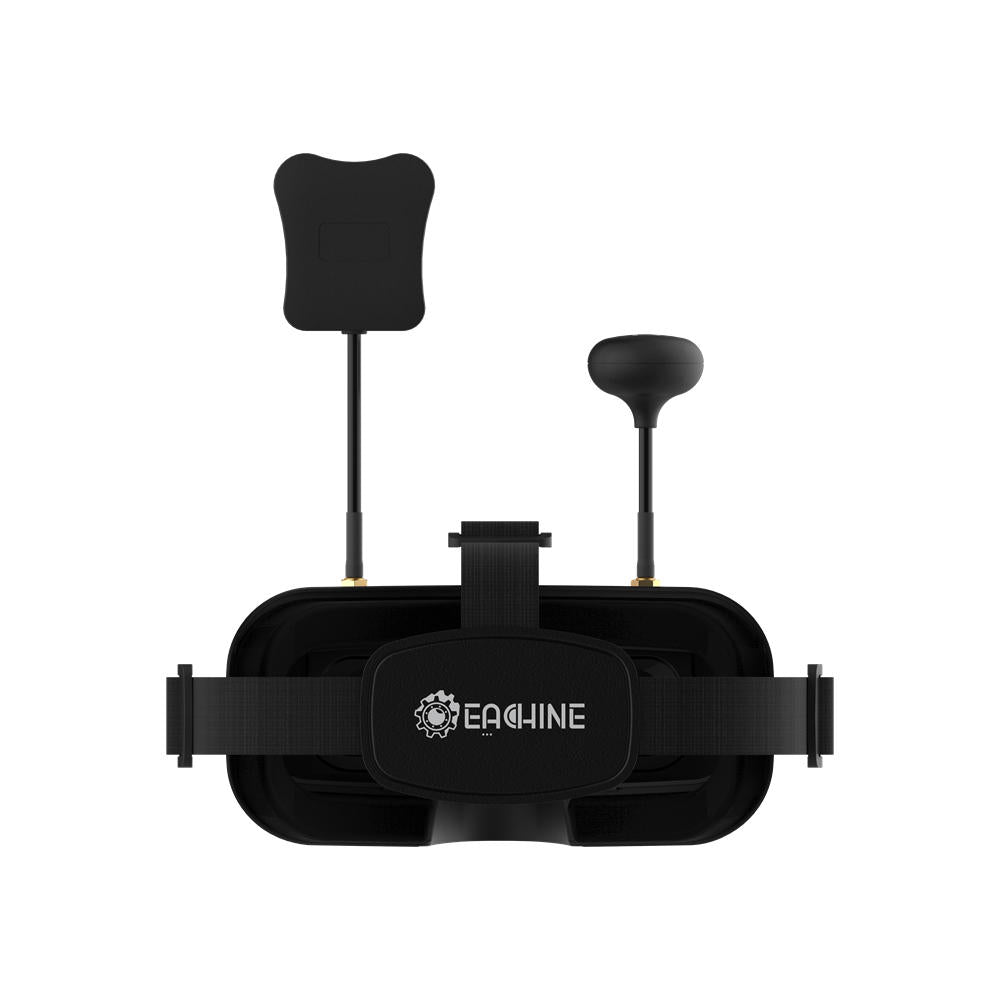

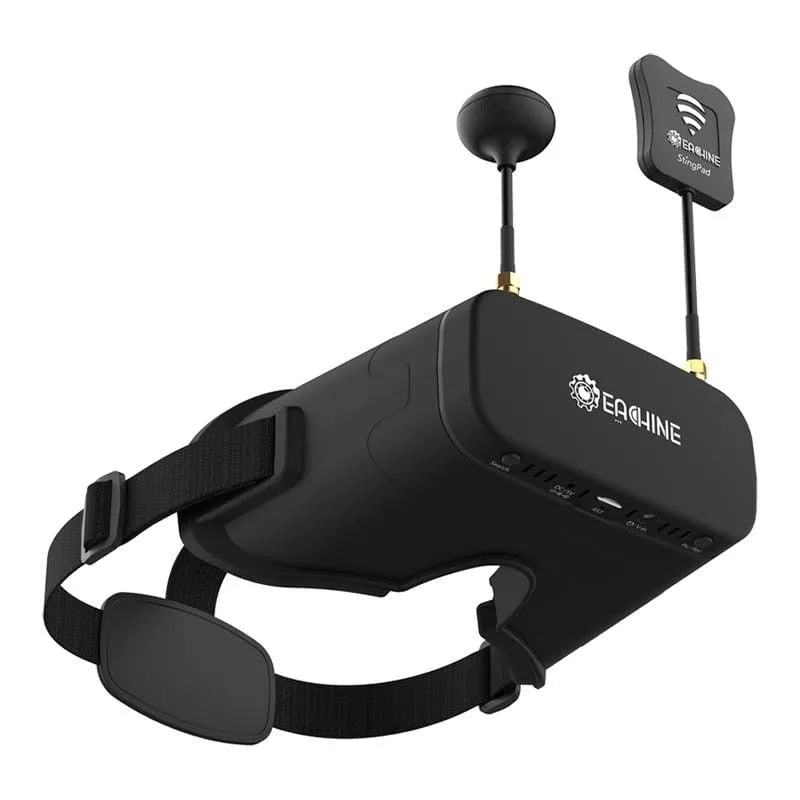

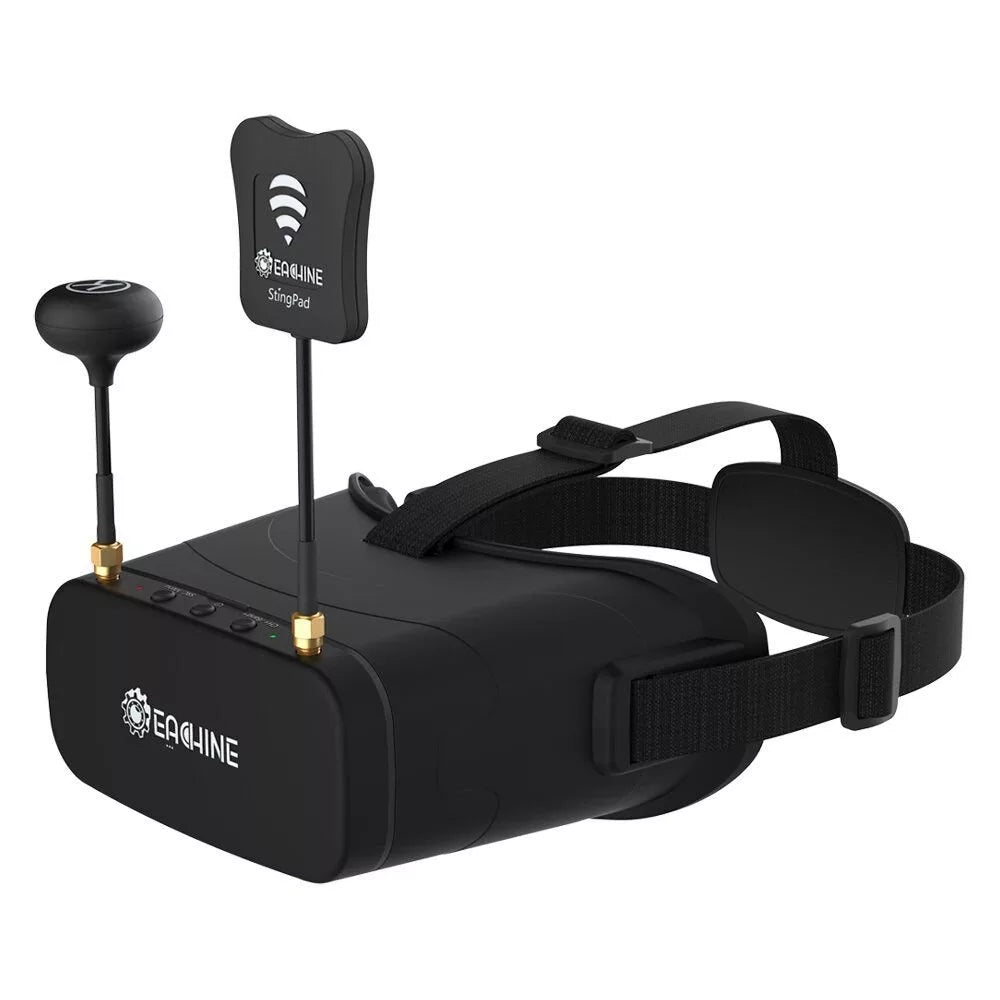

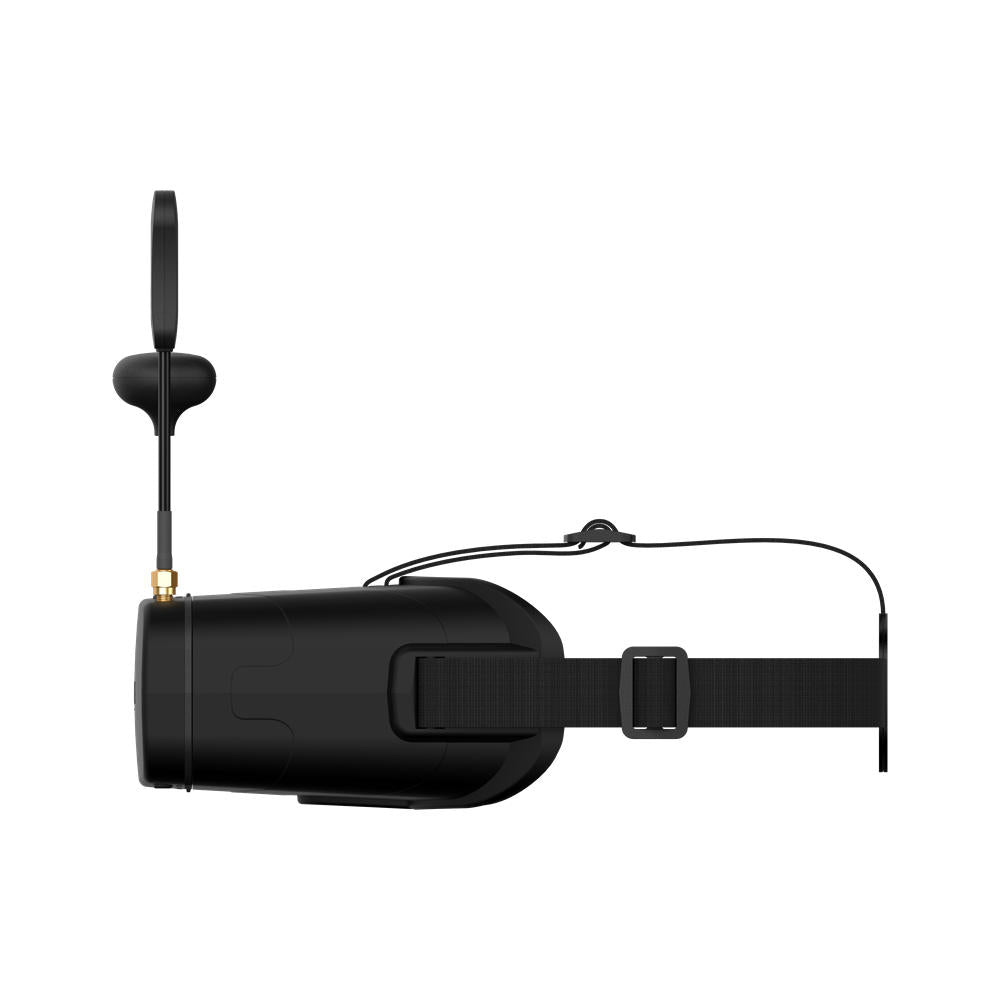

Eachine EV800DM 5.8G 40CH Diversity FPV Goggles

Features:

Built-in with super HD DVR up to 720*576px resolution Diversity RaceBand 40ch Auto-Searching Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 speed card to ensure the full frame recor ding) Work friendly with player-OSD, no block on the important flying OSD information; Focal length adjustable design;Room for eyeglasses HD high brightness 3 inch LCD specially tuned for FPV racing; Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand; Advanced auto-searching function and the working frequency show on screen; Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time; Wide range re-charge voltage 5-180V; Accept 2S or 3S batteries as back-up power source, to prolong the working time; Nice ergonomic design and fit different faces; Super-wide visible angle up to 82 degree; 92% transparent lens adopted, no distort, no blur on the edge of screen; Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game; 3 Inch 900*600px HD high brightness LCD

Description :

Brand Name : EACHINE Item Name : EV800DM Appearance: Dimension: 150*170*80mm Weight: 320g without antenna Belt : three-way adjustable belt Specifications: Build in DVR record up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to recor d full frame rate Diversity: -90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used Display: Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical) Lens: 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; Varifocal: 20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight Glasses Fit: Fit for wear with glasses; Glasses Fit Size; 140mm*40mm; Focal length need to be reset when wear glasses Battery: Built-in 3.8V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-18V wide range recharging voltage range, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Frequencies (5.8GHz, with RaceBand):

CH	CH 1	CH 2	CH 3	CH 4	CH 5	CH 6	CH 7	CH 8
GROUP
A or FR1	5865 MHZ	5845 MHZ	5825 MHZ	5805 MHZ	5785 MHZ	5765 MHZ	5745 MHZ	5725 MHZ
B or FR2	5733 MHZ	5752 MHZ	5771 MHZ	5790 MHZ	5809 MHZ	5828 MHZ	5847 MHZ	5866 MHZ
C or FR3	5705 MHZ	5685 MHZ	5665 MHZ	5645 MHZ	5885 MHZ	5905 MHZ	5925 MHZ	5945 MHZ
D or FR4	5740 MHZ	5760 MHZ	5780 MHZ	5800 MHZ	5820 MHZ	5840 MHZ	5860 MHZ	5880 MHZ
R or FR5	5658 MHZ	5695 MHZ	5732 MHZ	5769 MHZ	5806 MHZ	5843 MHZ	5880 MHZ	5917 MHZ

Package Includes:

1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR 1 x Clover Antenna 1 x Panel Antenna 1 x Battery Charger 1 x USB Power Charging Cable 1 x AV In/Out cable 1 x User Manual
