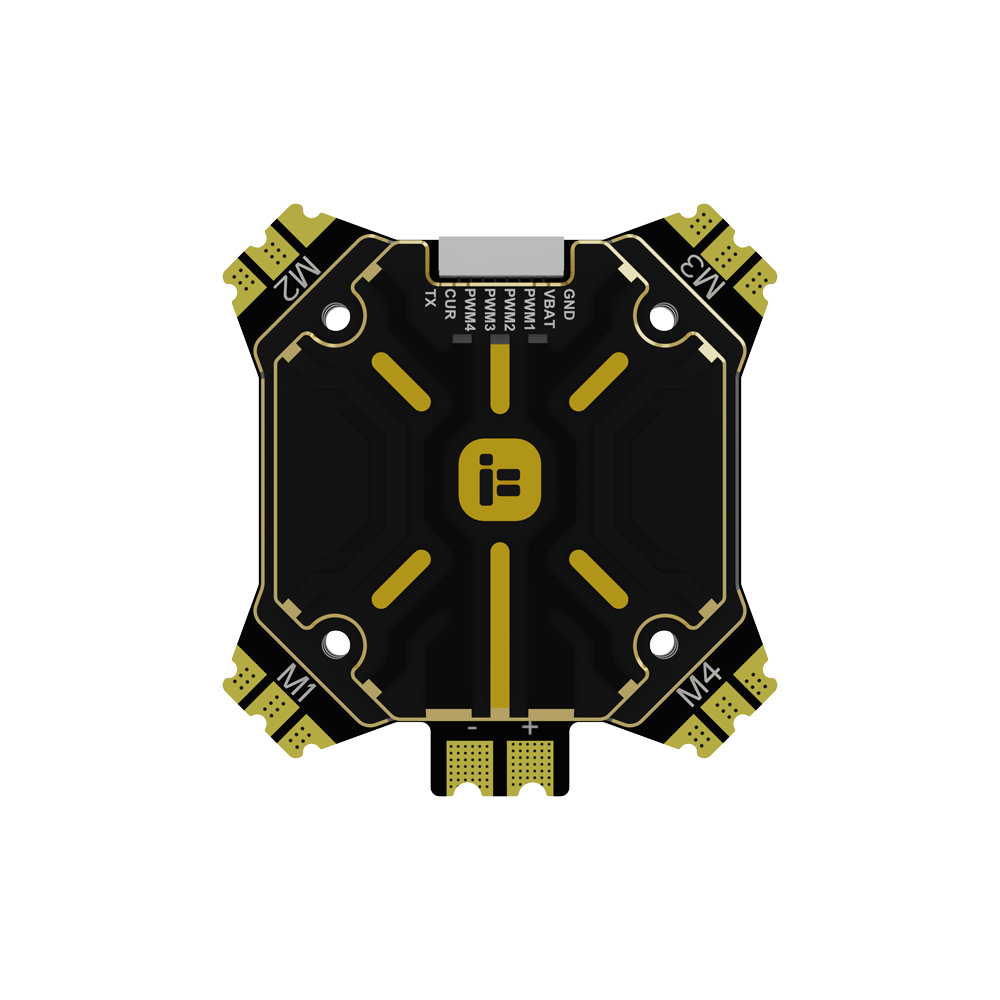

BLITZ E80 4-IN-1 Pro ESC (G2) 35×35

Name: BLITZ E80 4-IN-1 Pro ESC (G2) 35×35
Brand: insideFPV
SKU: 956953
Price: 21988.0 INR
Availability: OutOfStock

The BLITZ E80 4-IN-1 Pro ESC (G2) 35×35 is a great choice for FPV pilots who are looking for a high-performance and reliable ESC. It is compatible with a wide range of drones and applications, and it is sure to meet the demands of even the most demanding pilots.

Rs. 21,988.00

Sold out

Description

BLITZ E80 4-IN-1 Pro ESC (G2) 35×35

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
G071 MCU, 48mHz maximum clock speed;
TDK MLCC Low ESR ceramic capacitors;
Top grade PSMN1R0-40YLD MOSFET;
8 layers double-sided PCB board

Only 1 left in stock

Categories: ESC, ElectronicsSKU: 956953

Description

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.
The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
G071 MCU, 48mHz maximum clock speed;
TDK MLCC Low ESR ceramic capacitors;
Top grade PSMN1R0-40YLD MOSFET;
8 layers double-sided PCB board

Specifications

Product Name: BLITZ E80 4-IN-1 ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting Dimensions: 35x35mm/Φ4mm
Dimensions: 35x42mm
Weight: 65g(±10)
Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

Packing List

1 x BLITZ E80 4-IN-1 Pro ESC (G2）

1 x Wiring set

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Return & Refund

Share some content to your customers about your products.

Shipping & Delivery

Delivery time is between 3-5 business days.

*Images are for reference only. Actual product may vary from the image.

FEATURES

Supports up to 80A of continuous current and 100A of burst current

Compatible with 2-8S LiPo batteries

Built-in BEC that can provide up to 5V and 3A of power

Advanced features such as DShot, DShot150, DShot300, DShot600, MultiShot, and OneShot

High-quality components and construction

BLITZ E80 4-IN-1 Pro ESC (G2) 35×35

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
G071 MCU, 48mHz maximum clock speed;
TDK MLCC Low ESR ceramic capacitors;
Top grade PSMN1R0-40YLD MOSFET;
8 layers double-sided PCB board

Input Voltage:

2-8S

MCU:

G071

Firmware:

BLHeli32

Mounting Dimensions:

35x35mm/Φ3mm

Weight:

65g(±10)

What's Inside the box ?

1 x BLITZ E80 4-IN-1 Pro ESC (G2）

In Applications Like

FPV racing drones

Freestyle FPV drones

Long-range FPV drones
