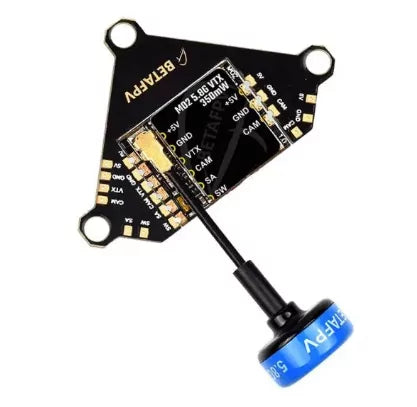

BETAFPV M02 25-350mW 5.8GHz VTX
About this product The M02 VTX by BETAFPV is a high-quality 5.8GHz VTX that comes […]
About this product
The M02 VTX by BETAFPV is a high-quality 5.8GHz VTX that comes with four adjustable power, including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun! Only weight 1.7g and comes with a separate 26.5 * 26.5mm mounting hole, which gives you the flexibility for building more types of drones. Suitable for 3″-5″ drones, such as TWIG ET5, X-Knight 4” FPV, and HX115 HD toothpick quad.
- With the 350mW output power, M02 VTX provides a stable image and strong transmission. Pilots can fly drones up to 600 meters away.
- M02 VTX comes with a separate 26.5*26.5mm mounting hole(needs to be soldered to the VTX), which is more flexible for building more types of drones. For the weight-sensitive drone, you can choose not to use this mounting hole while the single M02 VTX only weight 1.7g.
- Comes with IPX type of antenna, just plug and play, no extra solder work needed. M02 VTX is more convenient for the install of FC with a 5-pin connector.
- M02 VTX is perfectly suitable for the 3-5 inch drone, we highly recommend it for TWIG ET5, X-Knight 4” FPV and HX115 HD toothpick quad.
- Item: M02 5.8G VTX
- Output power: 25/100/200/350mW (adjustable)
- Supply voltage range: 4.5-5.5V
- Weight: 1.7g ( Mounting hole 0.7g)
- VTX internal size: 18X14mm
- Frequency: 5.8GHz 37 channels, with Raceband: 5645~5945MHz
- Channel SEL: SmartAudio
- Modulation type: FM
- Channel Indicate: 3 LEDs
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃~+60℃
Diagram for M02 VTX
How to Connect With FC
- 1 x BETAFPV M02 5.8G VTX
- 1 x 5-Pin FC Cable
- 1 x ZRC Antenna
- 3 x M1.4x8mm screws
- 3 x Anti-vibration rubber dampers
